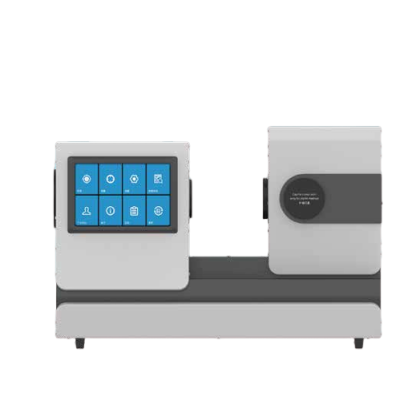

CHN SPEC CS-730 Visible-Infrared Spectrum Haze Meter (0/d, 400–1100 nm)

Wavelength range lens: 400-1100nm

Wavelength interval: 1nm

Optical path structure: 0/d

Measurement parameters: Haze (HAZE), transmittance (T), clarity (C), CIE Lab, LCh, CIE Luv, XYZ, Yxy, spectral transmittance, Hunter Lab Munsell MI, CMYK, whiteness WI (ASTM E313-00, ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), yellowness YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), metamerism index Milm, APHA, Pt-Co (platinum cobalt index), Gardner (Gardner index), color difference (ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*94, ΔE*00)

Light source: Haze/transmittance: CIE-A, CIE-C, CIE-D65

Chroma index:A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF, NBF, TL83,TL84

Follow standards: ASTM D1003/D1044, ISO13468/ISO14782, JIS K 7105, JIS K 7361, JIS K 7136, GB/T 2410-08, CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c

Measuring range: 0-100%

Spectral response: CIE spectral function Y

Illumination and sample aperture size: 18mm/25.4mm

Haze resolution: 0.01

Haze repeatability: ≤0.05

Through repeatability: ≤0.05

Interface: RS-232,USB-A,USB-B

Power supply: 220V (with own power cord), 110V can be customized

Standard: PC management software, definition standard film
