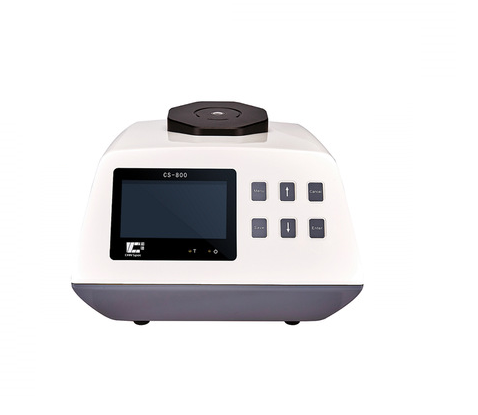

CHN SPEC CS-800 Desktop Spectrophotometer

Name: CHN SPEC CS-800 Desktop Spectrophotometer
Brand: CHN SPEC

ManufacturerCHN SPEC(View more products from this manufacturer)

ModelCS-800

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Illumination: d/8, SCS, SCE, ETC
Size of integrating sphere : Φ40mm，Alvan diffused reflection surface coating
Illumination Light source: CLEDs(entire wavelength balanced LED light source）
Sensor: dual light path sensor array
Wavelength range: 400-700nm
Wavelength interval: 10nm
Half spectral width: 5nm
Reflectivity range: 0-200%
Reflectivity resolution: 0.01%
Observation angle: 2°/10°
Measurement time: About 1 second
Measurement time interval: 0.5 second
Measuring caliber: Φ11mm
Interface: USB
Data storage: 40000 test results
Size: 350*300*200mm(L*W*H)
Weight: About 4.5kg
Display: 5-inch True color screen
Standard accessories: AC power line, manual, color management software, drive software, electronic
manual, color management guide, USB cable, black/white calibration tube,
electronic color charts

Product Introduction：

CS-800 uses 8/d（8°/diffused illumination）,design the upward test caliber, can measure state of solid,
samples of different particles, powder, paste etc. easily.
Solid samples (steel, cloth) can be placed directly on the measurement port, particles (tablets, master
batch), powder (pigment, coffee), paste objects (tomato sauce) can be placed in a Petri dish, and then placed
in the mouth of the measurement test.
Using ETC (Every Test Calibration) real-time calibration technique, in each measurement, the
spectrophotometer will be to calibrate the system hardware and software.
This technique solves the problem of long-term stability and measurement data drift color measuring
instrument fundamentally. Spectral reflectance standard deviation within 0.08, Chroma value Delta E*ab
maximum value of 0.03, the Inter-instrument agreement is less than 0.2.
The spectrophotometer can be connected through the use of PC and color management software,
it is easy to the quality control and color data management of enterprises. The color management of user
data, compare the color difference, generate test report, to provide a variety of color space data, color
management of customized customer.

Product Characteristic
Professional design, powerful instrument functions

Test caliber upward, can measure state of solid, samples of different particles, powder, paste etc. easily
Φ11mm measuring caliber
Uses LED light source; high capacity rechargeable lithium-ion battery 3000000 times in 10 years
Can measure both SCI(specular included)and SCE(specular excluded) at the same time
Obtained China Metrology Accreditation Certificate
5-inch TFT color screen
l USB data transmission, Includes PC software to manage data
Large data storage：Can record 40000 test data
Modern and fashionable design based on human engineering
Easy to use operation modes and compact operation interface
Design of low power consumption, large capacity rechargeable lithium battery configuration
Can connect to mini-printers for printing

Datasheet

Specifications

Illumination	d/8(Diffused lighting, 8 degrees observe angle）SCS optical engine（light splitting and integration system），ETC （real time calibration technology）,SCI（specular reflection included）/ SCE(specular reflection excluded）simultaneous measurement。（conform to CIE No.15、 ISO 7724/1、 ASTM E1164、 DIN 5033 Teil7、 JIS Z8722 Condition c standards）
Size of integrating sphere	Φ40mm，Alvan diffused reflection surface coating
Illumination Light source	CLEDs(entire wavelength balanced LED light source）
Sensor	dual light path sensor array
Wavelength range	400-700nm
Wavelength interval	10nm
Half spectral width	5nm
Reflectivity range	0-200%
Reflectivity resolution	0.01%
Observation angle	2°/10°
Measurement light source	A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10, F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Data being displayed	SPD distribution/data， sample color values， color difference values/graph， pass/fail results， color error tendency， color simulation， display measurement area,history data color simulation，manual input standard sample，generate measurement report
Measurement time	About 1 second
Measurement time interval	0.5 second
Measuring caliber	Φ11mm
Color space	CIE-Lab,LCh,Luv,XYZ,Yxy,reflectivity,Hunterlab,Munsell MI,CMYK
Color difference formulas	ΔEab,ΔECH,ΔEuv,ΔEcmc(2:1),ΔEcmc(1:1),ΔE94,ΔE*00,ΔEab(Hunter), 555,color classification
Other colorimetric indices	WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM E313,CIE,Ganz),metamerism index Milm, adhesive/changing color fastness, ISO luminance,8 gloss, A density, T density
Repeatability	light splitting reflectivity： standard deviation within 0.08% color values：ΔE*ab<=0.015（ After calibration, standard deviation of 30 measurements on test white board, 5 second intervals），Maximum： 0.03
Battery capacity	rechargeable, 20000 continuous tests, 7.4V/6000mAh
Interface	USB
Data storage	40000 test results
Light source longevity	10 years, 3 million tests
Inter-instrumentag reement	ΔE*ab within 0.2（ BCRA color charts II, average of the 12 charts）
Size	350300200mm(LWH)
Weight	About 4.5kg
Display	5-inch True color screen
Work temperature range	0~45℃, relative humidity 80% or below（at 35°C）， no condensation
Storage temperature range	-25℃ to 55℃， relative humidity 80% or below（ at 35°C）， no condensation
Standard accessories	AC power line, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, electronic color charts
Optional accessories	powder molding device, measurement and test report
Color matching system	Matches
UV light source	Does not include UV light source
