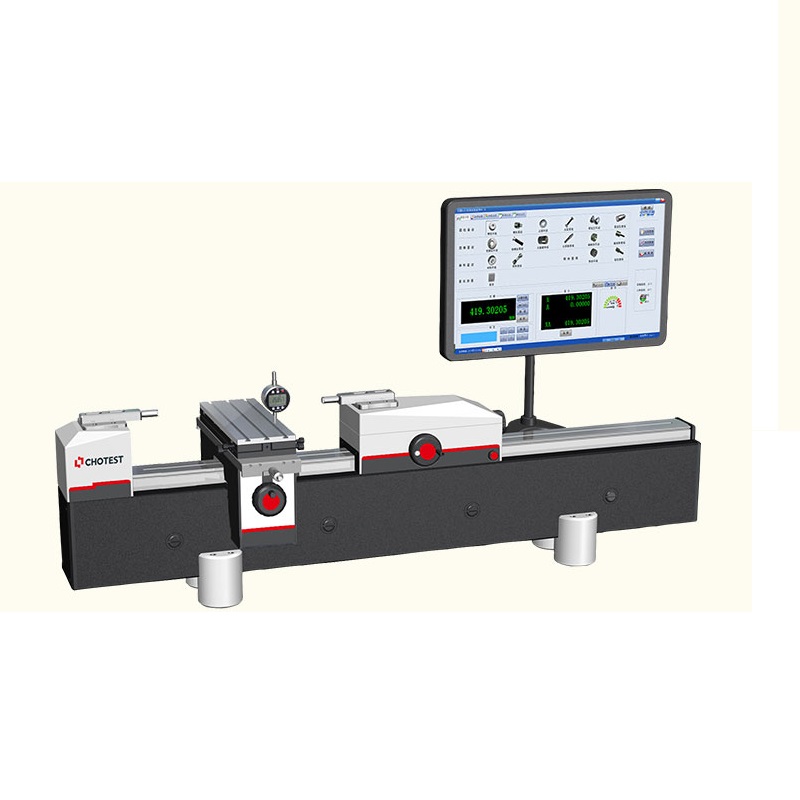

Chotest SJ5100-600A Universal length measuring machine (0.7~500mm; 0~640mm; 0.01μm)
Manufacturer: Chotest Model: SJ5100-600A - Contact
Inside measuring range: 0.7~500mm
Outside measuring range: 0~640mm
Indication error: ±(0.12+L/1000)μm
Resolution: 0.01μm
Repeatability (2s): 0.08μm
Max thread pitch: 200mm(Ring gauge) / 250mm(Plug gauge)
Measuring force range: 0.1N, 0.3N, 0.5N, (1~10N) continuously adjustable by hand
Dimension(mm): 1400×400×450
Weight(kg): 150
