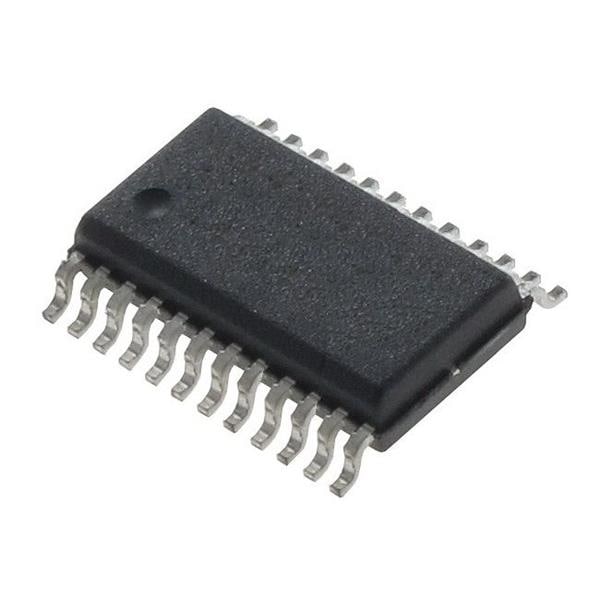

Cirrus Logic CS5523-ASZ ADCs - Analog to Digital Converters 4-Ch 16-Bit Delta Sigma ADC

Width: 5.3 mm

Height: 1.73 mm

Length: 8.2 mm

Input Type: Differential

Resolution: 24 bit

Unit Weight: 1.700 g

Architecture: Sigma-Delta

Sampling Rate: 617 S/s

Interface Type: 3-Wire

Mounting Style: SMD/SMT

Reference Voltage: 2.5 V

Moisture Sensitive: Yes

Number of Channels: 4 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 2.7 V, 4.75 V

Pd - Power Dissipation: 500 mW (1/2 W)

Operating Supply Voltage: 2.7 V to 5.25 V, 4.75 V to 5.25 V

INL - Integral Nonlinearity: +/- 0.003 % FSR

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
