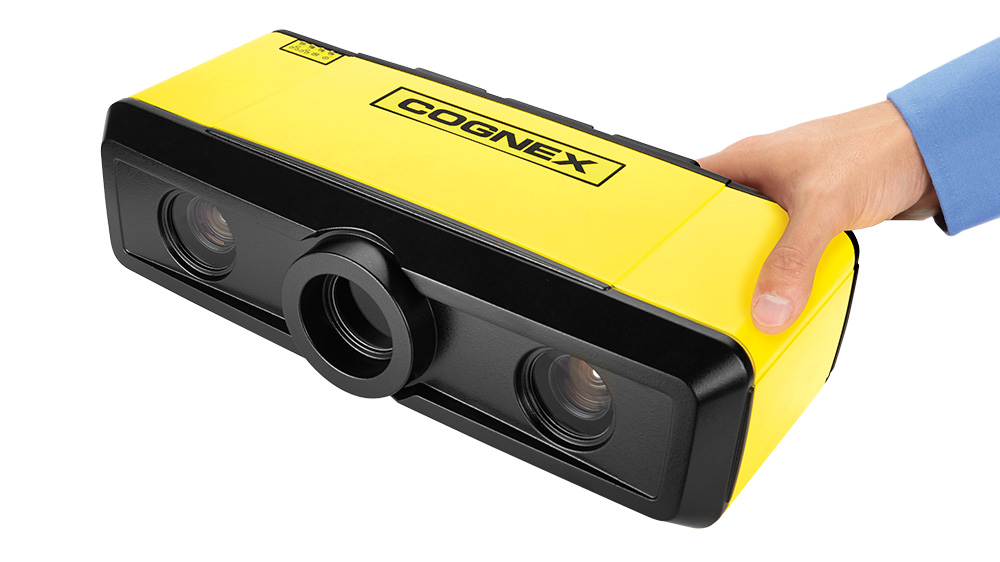

Cognex 3D-A5030 Area Scan 3D Camera (190.0mm; 1415.0mm)

Clearance Distance (CD): 1415.0mm

Measurement Range (MR): 190.0mm

Near FOV: 250 x 180 mm

Far FOV: 290 x 220 mm

Resolution XY: 191–204 µm

Resolution Z : 166–213 μm

Repeatability Z (σ): 80–110 µm

Dimensions: 324 x 137 x 97 mm

Weight: 3.0 kg

Operating Temperature: 0–40 °C (32–104 °F)

Storage Temperature: -10–60 °C (14–140 °F)

Operating Humidity :<85% (non-condensing)

Protection: IP65

Shock: 50 gs (11 ms half-sine pulse)

Vibration: 4 gs (10–120 Hz for 30 minutes)

Trigger

Trigger input voltage limits: 24 VDC

Input ON: >10 VDC (>6 mA)

Input OFF: <2 VDC (<1.5 mA)

Power Voltage: +24 VDC (22–26 VDC)

Current: 6.0 A max

Acquisition Time 200 msec

Software: VisionPro

Ethernet: 10 Gigabit Ethernet interface

Optional Accessories: Fan
