DC voltage:
Measuring range: 0 to 10 V
Accuracy: ±10 mV
Resolution: better than 100 µV
DC current:
Measuring range: 0 to 20 mA
Accuracy: ±20 µA
Resolution: better than 0.1 µA
Binary input:
Input voltage for level “switched on”: <0.4 V/> 2 V
Minimum/maximum input voltage: 0 V/+30 V DC
Impedance of the “switched on”: < 10 kOhm/> 300 kOhm
Counter input:
Range of counter: 24 bit (16 777 215) the counter overflow can be allowed
Maximum input frequency: 200 Hz
Operating temperature: -10 to +60 °C
Channels: 4x binary, counter, voltage and current input
Memory: 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
Recording interval: 1s to 24 hours
Display and alarm refresh: each 10 s
Recording mode: noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Available temperature units: degrees Celsius, degrees Fahrenheit
Communication interface Ethernet, USB, RS232
Ethernet communication protocols: WWW, SNMPv1, XML, DATALINK
Alarm protocols: E-Mail
Power: AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)
Protection class: IP20
Dimensions (without connectors): 178 x 95 x 37mm, without attached cables
Weight (including batteries): approx. 380 g
Included in delivery:

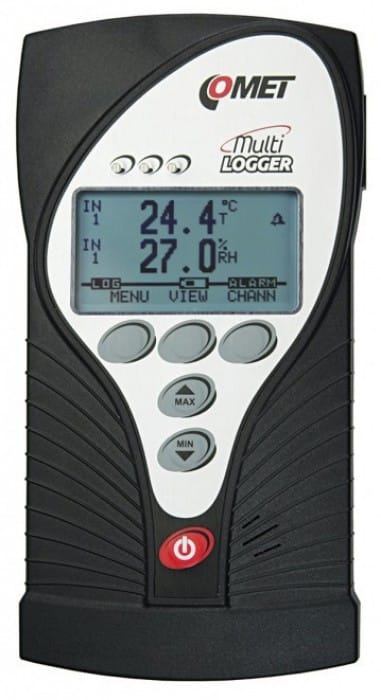

M1300
Instruction Manual
Traceable Calibration Certificate
3x Rechargeable Battery AA
Power Supply
USB Cable
Wall Holder
FREE FULL VERSION Analytical Software COMET Vision
EXTERNAL PROBES ARE NOT INCLUDED IN DELIVERY
