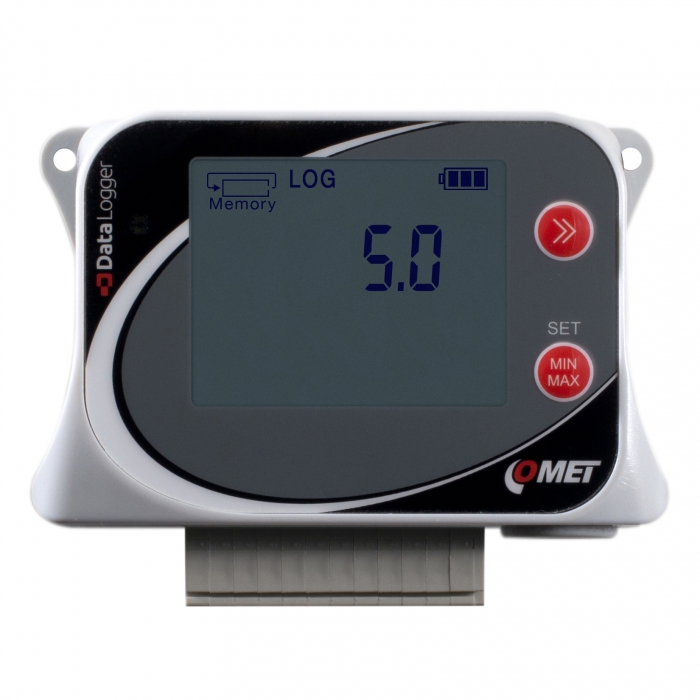

Comet U5841 Data logger for 3 voltage inputs 0-10V and 1 two-state input (Lithium 3.6V, AA)

Measured value: Current, Two-state signal

Current input:

  Measuring range: 0 to 10 V DC

  Accuracy: ±10 mV

  Input resistance: approx. 130 kΩ

Binary input:

  Parameters of the voltage contact: "L" level input voltage:< 0.8 V(*);

                                                         "H" level input voltage:> 2 V;

                                                          Minimum voltage applicable: 0 V;

                                                          Maximum voltage applicable: +30 V DC

Parameters of the voltage-free contact: Contact resistance in "switched-on" state: < 10 kOhm;

                                                               Contact resistance in the "switched-off" state: > 2 MOhm;

                                                               Contact voltage in the "switched-off" state: ca 3 V;

                                                               Minimum state duration necessary for latching the state: 1s

Operating temperature: -20 to +60 °C

Channels: 3x current input, 1x binary input

Memory: 500 000 values in noncyclic logging mode; 350 000 values in cyclic record mode

Recording interval: adjustable from 1 s to 24 h

Display and alarm refresh: adjustable 1 s, 10 s, 1 min

Recording mode: noncyclic - data logging stops after filling the memory

                            cyclic - after filling memory oldest data is overwritten by new

Real time clock: year, leap year, month, day, hour, minute, second

Power: Lithium battery 3.6V, size AA

Protection class: IP20

Dimensions: 61 x 93 x 32 mm

Weight (including batteries): approx. 120 g

Included in delivery:

  U5841

  Instruction Manual

  Traceable Calibration Certificate

  1x Lithium battery 3.6 V

  FREE FULL VERSION Analytical Software COMET Vision

  USB COMMUNICATION CABLE IS NOT INCLUDED IN DELIVERY
