Measured value: Current, Two-state signal
Current input:
Measuring range: 0 to 20 mA DC
Resolution: better than 1 µA
Accuracy: ±20 µA
Input resistance: approx. 100 Ω
Minimum current: 0 mA (open circuit)
Maximum current: limited to approx. 40 mA
Binary input:
Parameters of the voltage contact: "L" level input voltage:< 0,8 V(*);
"H" level input voltage:> 2 V;
Minimum voltage applicable:0 V;
Maximum voltage applicable:+30 V DC
Parameters of the voltage-free contact: Contact resistance in "switched-on" state: < 10 kOhm;
Contact resistance in the "switched-off" state: > 2 MOhm;
Contact voltage in the "switched-off" state: ca 3 V;
Minimum state duration necessary for latching the state: 1s
Operating temperature: -20 to +60 °C
Channels: 3x current input, 1x binary input
Memory: 500 000 values in noncyclic logging mode; 350 000 values in cyclic record mode
Recording interval: adjustable from 1 s to 24 h
Display and alarm refresh: adjustable 1 s, 10 s, 1 min
Recording mode: noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock: year, leap year, month, day, hour, minute, second
Power: Lithium battery 3.6V, size AA
Protection class: IP20
Dimensions: 61 x 93 x 32 mm
Weight (including batteries): approx. 120 g
Included in delivery:

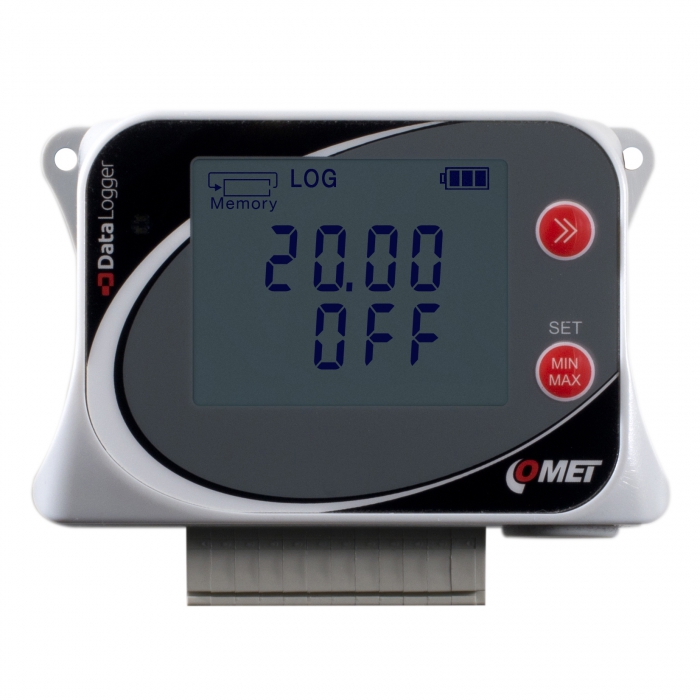

U6841
Instruction Manual
Traceable Calibration Certificate
1x Lithium battery 3.6 V
FREE FULL VERSION Analytical Software COMET Vision
USB COMMUNICATION CABLE IS NOT INCLUDED IN DELIVERY
