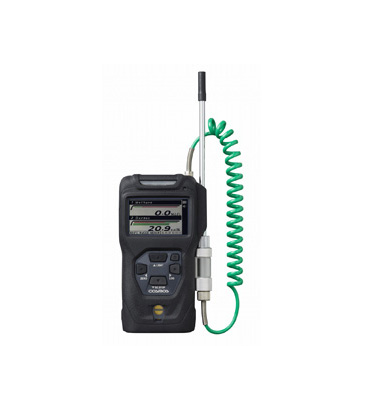

COSMOS XP-3340II Combustible Gas Detector (0-100.0vol%)

Sampling Method: Extractive

Alarm Method:

+ Gas Alarm: Beeping with flashing red light and AL icon on the LCD

+ Device Error: Beeping with flashing yellow light and error message on the LCD

Power Source:

+ Non-rechargeable alkaline AA battery x4: Toshiba LR6, Panasonic LR6X, Duracell MN1500, Energizer E91 or Varta 4106

+ Rechargeable nickel metal hydride AA battery x4: New Cosmos HR-3UTG

Operating Temperature/Humidity: -20 to 50℃ 95%RH. No condensation

Main Features:

Self-diagnosis (sensor error), Zero adjustment, Battery level indication, Flashlight, Peak-hold, LCD backlight, Audio alarm muting during gas alarm, Time indication, Alarm test, Alarm volume change, Audio muting

Dimensions: W91 x H164 x D44mm

Mass: Approx. 460g (including batteries)

Accessories: Gas sampling tube(1m), Shoulder strap,  Drain filter, Filter element, Alkaline AA batteries(or Rechargeable nickel metal hydride AA batteries) x 4, Screen protector film x 3

Target Gas: Combustible gas/Inert gas

Detection Principle: Thermal conductivity

Measuring Range (Reference Indication): 0-100.0vol%

Accuracy*2: ±5%F.S..

Resolution:  0.1vol%

Alarm Set Value: 50vol%

Response Time: T90: 60 seconds

Continuous Operation Time*3: Approx. 100 hours

*1 When using alkaline AA batteries. Please contact us for full information.

*2 Under an identical measurement condition.

*3 At 25℃, with no alarm and backlight off. The time varies according to the circumstances, condition of use, storage period, battery manufacturer, etc.
