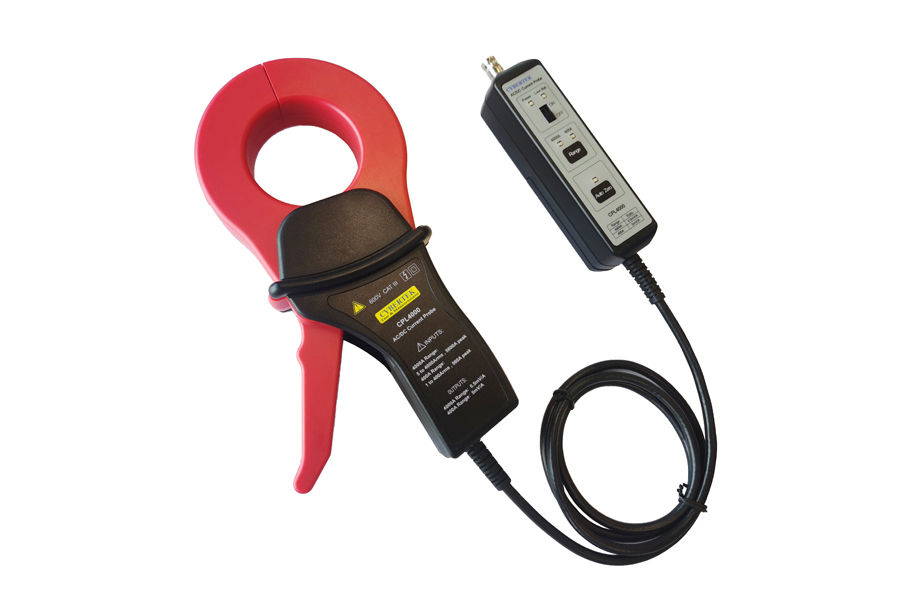

Cybertek CPL4000 Low Frequency AC/DC Current Probe (4000A/ 5kHz)
Manufacturer: Cybertek Model: CPL4000 - Contact
Range: 400A; 4000A
Maximum Measurable Current: 400Arms; 4000Arms
Peak Value Current: 560Apk; 5600Apk
Range Sensitivity: 5mV/A; 0.5mV/A
Typical Precision (DC,45Hz~66Hz): ±3%rdg.±5mV; ±3%rdg.±1mV
Bandwidth（-3dB): DC～5kHz
Typical Battery type and life: 9V alkaline cascade battery/ 11 hours
Operating Voltage: CATII 600V
Low Power Indication Function: Lighted red when battery voltage is lower than 6.5 V
Overload Indication Function: Buzzer will be activated when current under test surpass the range
