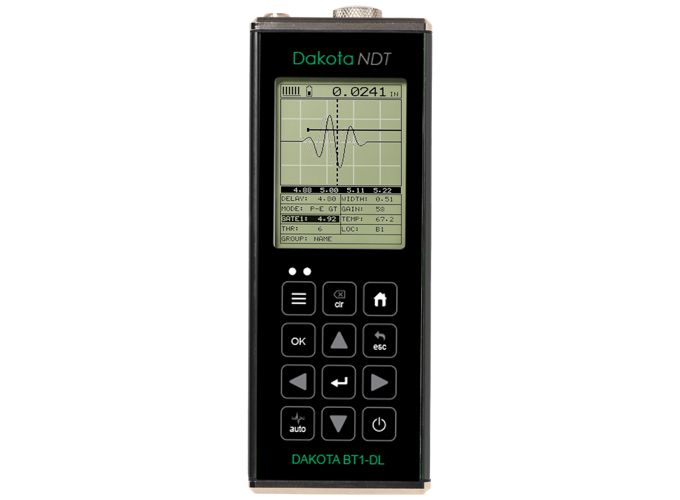

Dakota BT1-DL Bolt Tension Monitor (PE - 25.4 - 25400mm)

Measurement Range:

PE - 25.4 - 25400mm (1 - 999”)

Resolution: 0.001mm (0.0001”) or 0.0001mm (0.00001”) switchable

Operating Temperature: -10 to 60ºC (14 to 140ºF)

Power Supply: 3 x AA batteries and via USB

Battery Life: Alkaline 35 hrs; Nicad 10 hrs; NI-MH 35 hrs

Gauge Weight: 383g (13.5oz) - including batteries

Gauge Dimensions: 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”)

Packing List: Unit; 3 AA Batteries; 4 oz. Bottle of Couplant; USB Type A to Type C Transfer Cable; Carrying Case; 10’ Lemo to Microdot Transducer cable; PC Utility Software (download from website); Operation Manual and Certification.

Datasheet

Manual
