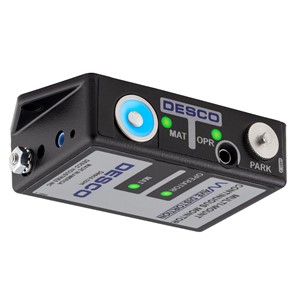

Desco 19337 Multi-Mount Continuous Monitor w/Universal Plug (500 kΩ ~ 10 MΩ)

Input Voltage and Frequency (External Adapter)

AC/DC Power Adapter

Power Input: 100-240 VAC, 50/60 Hz

Power Output: 9 VDC

Cable Length: 5 ft. (1.5 m)

Operating Temperature: 50 to 95° F (10 to 35° C)

Environmental Requirements

Indoor use only at altitudes less than 6500 ft. (2 km)

Maximum relative humidity of 80% up to 85° F (30° C) decreasing linearly to 50% @ 85° F (30° C)

Dimensions: 3.87" L x 2.09" W x .90" H (98 mm x 53 mm x 23 mm)

Weight: 2.2 oz. (64 g)

Operator Test Range*: 500 kilohms to 10 megohms impedance

Worksurface Test Limit**: 10 megohms (±20%)

Operator Test Voltage: 1.2 V peak-to-peak @ 1.2 µA, open circuit

Worksurface Test Voltage: 5 to 7.5 V, open circuit

Alarm Response Time: <50 ms

19337 Multi-Mount Continuous Monitor includes:

1 Multi-Mount Continuous Monitor

1 Mat Monitor Cord (White)

1 Countersunk Washer

1 Flat Head Screw, 6-32 x 1/4"

2 Pan-Head Screws, #6 x 3/8"

1 Dual Lock Fastener Set, 2" Length

1 10 mm Interchangeable Park Snap

1 10 mm Operator Jack Adapter

1 Power Adapter with IEC C14 Inlet, 9 VDC
