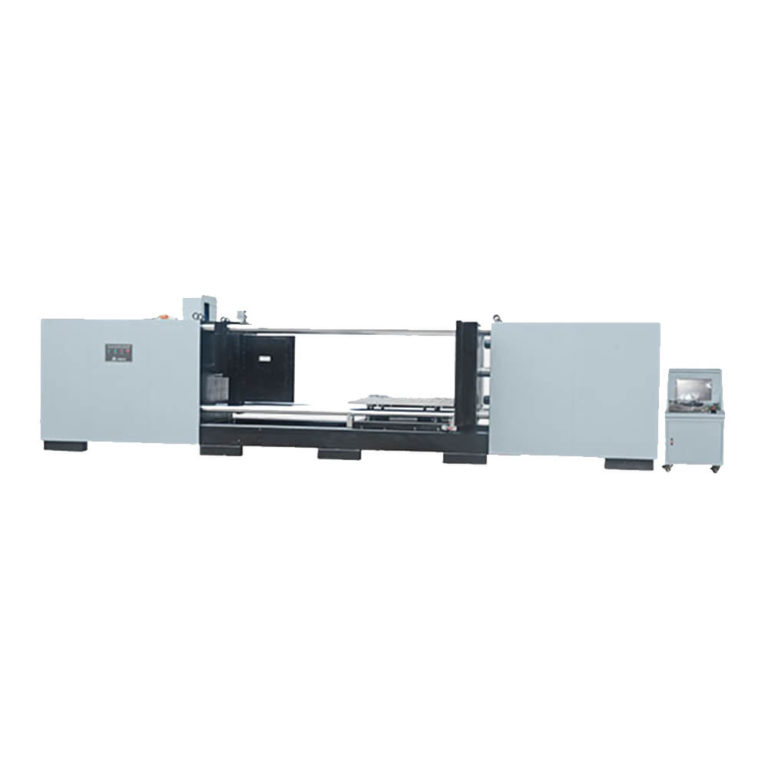

DGBell BE-6047AP-20T Horizontal Battery Crush Nail Penetration Test Machine (20 T, AC380V 50HZ)

Pressure (T):20

Structure: Horizontal

Crush Mode: Horizontal

Drive Mode: Electro-hydraulic servo

Chamber: Independent horizontal structure and control system

Test Space: W2500 X D2000 X H1000mm (can be customized)

Overall Dimension: W8500 X D2500 X H2400mm

Energy Saving Design: Adopt dual hydraulic cylinder driving,  main-subsidiary hydraulic cylinder design. Maximized saving space and reduce the total power configuration of the equipment.

Power Supply: AC380V 50HZ

Crush Speed: 1~400mm/min (Adjustable)

Nail Penetration Speed: 1~40mm/s (Adjustable)

Test Condition: The variable of force, displacement, speed, time, auxiliary voltage, auxiliary temperature (.etc) can be used as control variable in nail penetration and crush tests.

Control Mode: MCU+PC combined control mode, remote control operation to ensure the safety of testing.

Running Mode: Available for Programming Mode and Constant Mode

Crush Accuracy: ≦0.5%(FSR)

Nail Penetration Accuracy: ≦1%(FSR)

Crush Deformation: 0~100% multistage setting, multi-layer crush deformation loading available.

Crush Fixture: Arc crush plate （ Radius 75mm）, available for different fixtures according to different test standards.

Data Acquisition Module: Independent remote collection and isolation, Multiplex voltage, temperature, current acquisition channel, ensure the data correctly .

Safety Alarm Device: Electrical leakage, over voltage, overload and over temperature, over current protection, abnormal sound and light alarm, smoke alarm lamp, etc
