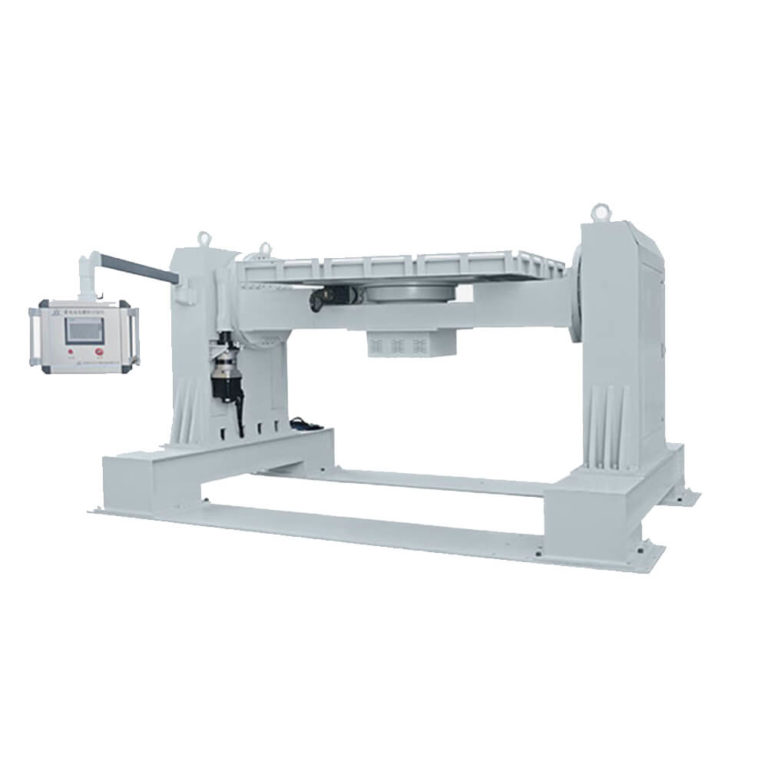

Rotation Angle: -360°~+360°(adjustable)
Rotate Speed: 1°/s—12°/s adjustable
Rotate Direction: X/Y axis automatic switching
Max.Test Space: W2500 X D2000X H1000mm
Max. Test Load: 1000KG
Max.Overall Dimension: W4650 X D2780X H2400mm
Rotate Plate Dimension: W2500 X D2000X H100mm
Equipment Weight: Approx 5 Tons
Control Mode: PLC touch screen control + PC remote control (Dual Control)
Running mode:
1. Programming mode: adopt fully automatic design, after the battery pack is placed on the rotating plate, press the start button. The whole test will be Auto-completed according to the program. The rotation of X/Y axis can be switched automatically without manual adjustment.
2.Fix Value mode.
Workbench: The rotation of X/Y axis can be switched automatically.
Power Supply: AC 220V 9KW
Other Requirement:
Video Monitoring System
Safety Protection System for Close Operation
Working Status Display System.
