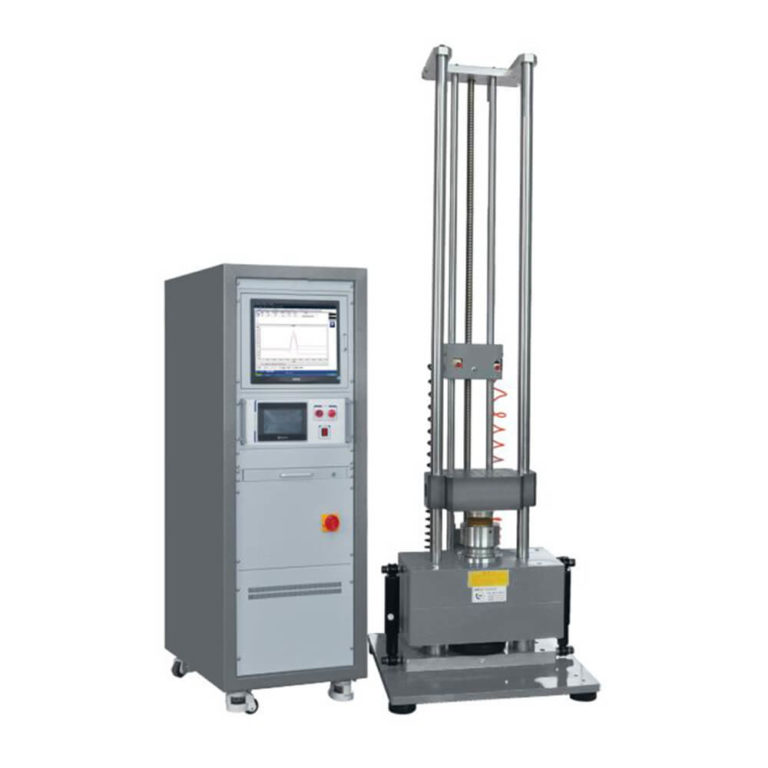

DGBell BE-SKT-10 Shock Test System for Lithium Battery Test (150 ～ 15000 m / s2)

Specified Load: 10 kg, (Including fixtures and test specimen)

Bench Dimension: L200×W200 mm

Pulse Wave: Half sinusoidal wave

Shock Impact Peak Acceleration: 150～15000 m/s2

Pulse Duration: 0.6～20ms

External Dimension: L1000mm×W500mm×H2700mm

Total Weight: 1500 kg

Impact Form: Free fall

Max. Drop Height: 1500mm

Power Supply: Three phase 380V，50/60 Hz

Hydraulic Source: With the equipment

Ambient Condition:

Temperature: 0～40℃

Humidity（25℃）: ＜85％

Reliability

1.Average failure-free accumulation working time ≥ 1000h;

2.The half-sine waveform generator has no less than 5000 consecutive impacts;

3.The half-sine waveform generators have a storage time of no less than 5 years in a clean, room temperature environment.

Testing System: Shock DAQ, Impact, collision measurement control system

Usage Standard: GJB150、GJB360、GJB548、GB/T2423、GJB1217、JJG497、GIEC68-2-27

Testing Standard: Acceleration amplitude, pulse width, uniformity, and lateral motion ratio meet the requirements of JJG541-88.
