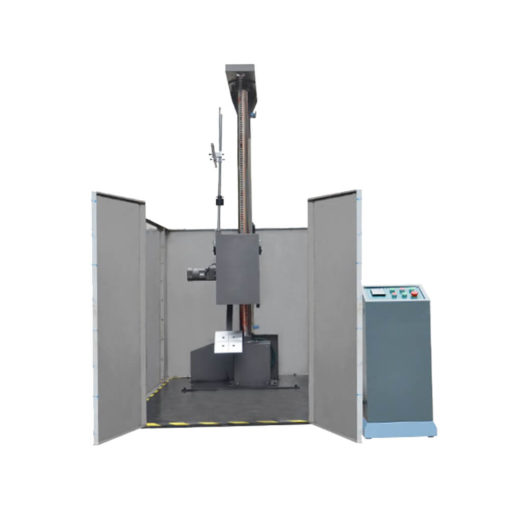

DGBell BF-F-315ST Traction Battery Drop Tester (300~1500mm)

Drop Height:300~1500mm (Adjustable)

Display Mode:Digital display, adjustable

Max. Load:0~70KG (can be customized 100KG, 200KG, etc.)

Testing Method:Face, edge, corner dropping

Control Method:Machine & Controller remote control independent

Drop & Lifting Method:Electric

Specimen Max. Size:W800 X D600 X H800mm (Customized available)

Overall Dimension:W1200 X D1700 X H2400mm

Drop Floor Material:Standard Steel Plate (Optional: Cement plate, marble plate, wood plate)

Power Source:AC 380V 50HZ 0.75KW

Machine Weight:Approx 750KG

Safety Alarm Device:Electric leakage, over-temperature, over-voltage, overloading, over-current protection, abnormal sound light alarm, smoke alarm, etc.

Safety Protection:Explosion-proof fence surrounded
