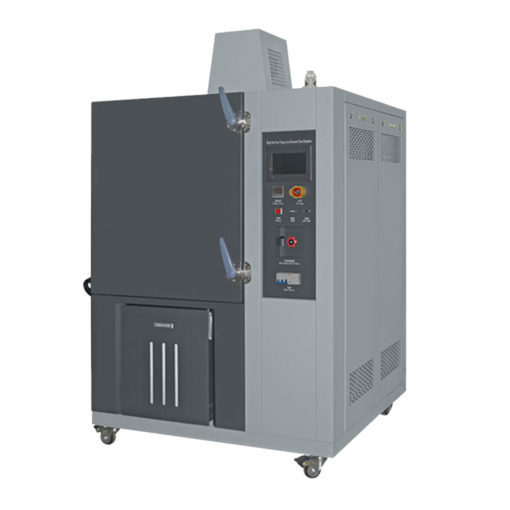

DGBell BTHQ-225 Combined Altitude & Temperature Environmental Test Chamber (-70 ～ 150 ℃, 101kPa-0,5kPa)
Manufacturer: DGBell Model: BTHQ-225 - Contact
Test SpaceW x H x D(mm): 600x750x500
External Dimension W x H x D(mm): 1100x1900x1200
Temp. Range: B：-20～150℃, C：-40～150℃, D：-70～150℃
Temp. Fluctuation: ±0.5℃（atmospheric ，no load ）
Temp. Deviation: ≤±2℃（atmospheric ，no load ）
Temp. Uniformity: ≤±2℃（atmospheric ，no load ）
Cooling Rate: 0.8-1.2℃/min
Pressure Level: 101kPa-0.5kPa
Pressure Reducing Time: 101kPa→1.0kPa≤30min（dry ）
Pressure Deviation: atmospheric -40kp;±1.8kpa;40kp-4kpa;±4.5%kpa;4kp-0.5kpa;±0.1kpa
Pressure Recovery Time: ≤10KPa/min
Weight: 1500kg
