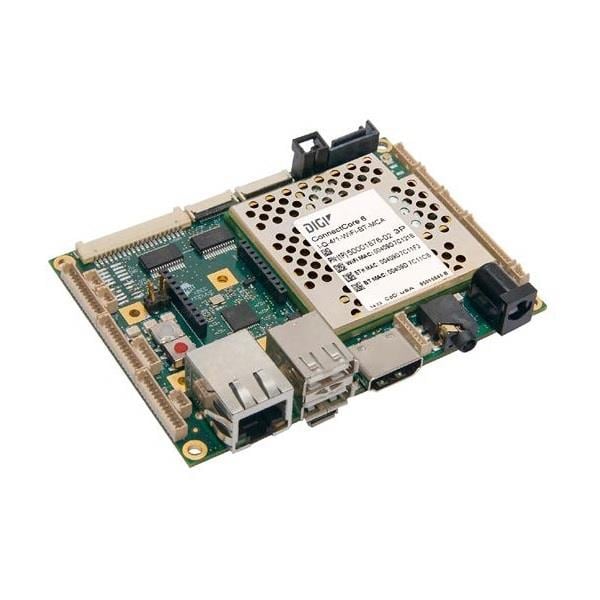

DIGI CC-SB-WMX-KK8D Single Board Computers CC6 Plus Pico Module i.mx6 SOM
Manufacturer: DIGI Model: CC-SB-WMX-KK8D - Contact
Core: ARM Cortex A9
Flash: 8 GB
Frequency: 1.2 GHz
Dimensions: 100 mm x 72 mm
Form Factor: Pico-ITX
Memory Type: DDR3
Installed RAM: 2 GB
Interface Type: Audio, Bluetooth, Ethernet, GPIO, HDMI, I2C, JTAG, LVDS, MIPI-CSI, MIPI-DSI, Parallel, PCIe, RS-232, SPI, UART, USB 2.0, WiFi
Processor Type: i.MX 6QuadPlus
Processor Brand: NXP
Maximum RAM Capacity: 2 GB
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
