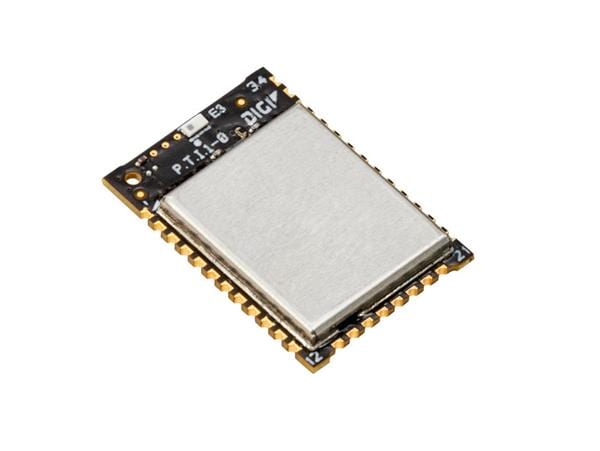

DIGI XBRR-24DMUM Zigbee Modules Digi XBee RR PRO DigiMesh, 2.4 GHz, Micro, U.FL Ant, MMT, 1M/96K
Manufacturer: DIGI Model: XBRR-24DMUM - Contact
Range: 300 ft, 2 mile
Data Rate: 250 kb/s
Frequency: 2.4 GHz
Dimensions: 19 mm x 13 mm x 2 mm
Sensitivity: - 103 dBm
Output Power: 19 dBm
Interface Type: I2C, SPI, UART
Moisture Sensitive: Yes
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 2.1 V
Antenna Connector Type: u.FL
Supply Current Receiving: 17 mA
Supply Current Transmitting: 135 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4, Zigbee 3.0
