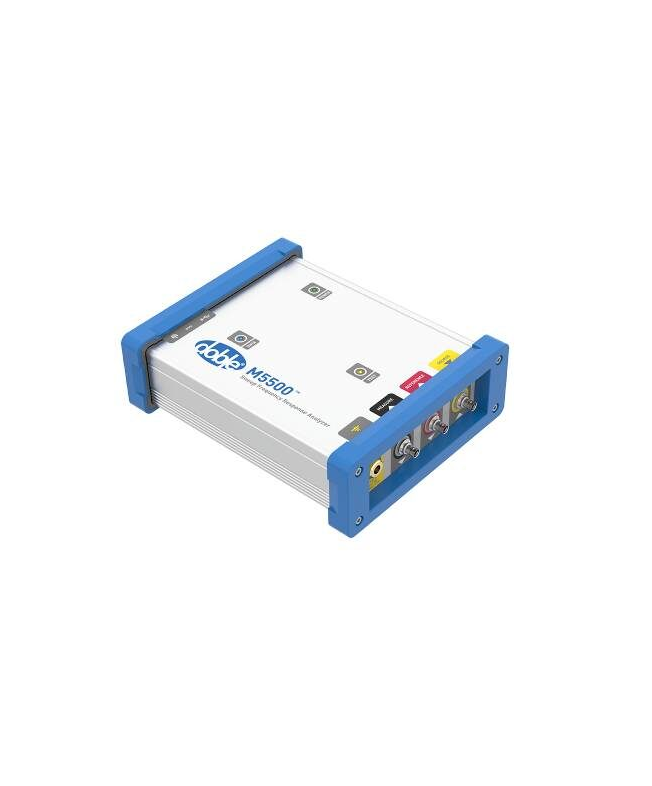

Doble M5500 Sweep Frequency Response Analyzer (10 Hz – 25 MHz, 1CH)

EXCITATION SOURCE:

Channels: 1

Frequency Range: 10 Hz – 25 MHz user defined ,within instrument frequency range

Output Voltage (pk-pk into 50 Ohms): User selectable between 10 V (default) and 2.5 V

Output Protection: Short circuit protected

Source Impedance: 50 Ohms

MEASUREMENT CHANNELS

Channels: 2

Sampling: Simultaneous

Frequency Range: 10 Hz – 25 MHz

Max. Sampling Rate: 100 MS/s

Input Impedance: 50 Ohms

Recommended Calibration: 1 year

ACCURACY

Magnitude (guaranteed 20 Hz - 2 MHz):

± 0.1 dB (down to -60 dB)

± 0.5 dB (-60 to -100 dB)

DATA COLLECTION

Test Method: Sweep Frequency

PC Comm: USB/Wireless

Frequency Range: 20 Hz - 2 MHz (default), user defined within instrument frequency range

Number of Points:

1045 points (default)

5000 points max per decade (log)

32,000 points max (linear)

Dynamic Range (20 Hz - 2 MHz): >150 dB

IF Bandwidth: <10% of measurement frequency, adaptive

Point Spacing: Variable, Linear or Logarithmic

DATA DISPLAY/EXPORT/ANALYSIS

Tabulation: Frequency/Magnitude/Phase

Export Formats: CSV/IEC/CIGRE, SFRA v5

Plotting: Frequency vs. Magnitude/Phase/ Impedance/Ratio

Analysis: Difference, Cross-Correlation, Leakage Channel, Ratio

PHYSICAL SPECIFICATIONS

Dimensions: 12.25 x 9.5 x 3.7 in (31 x 24 x 9.4 cm)

Weight: 7 lbs (3.2 kg)

Power Supply: 24 VDC (40 W Universal AC in power supply)

Temperature -25° to + 55°C operating -40° to + 85°C storage

Relative Humidity: 0% to 95% non condensing
