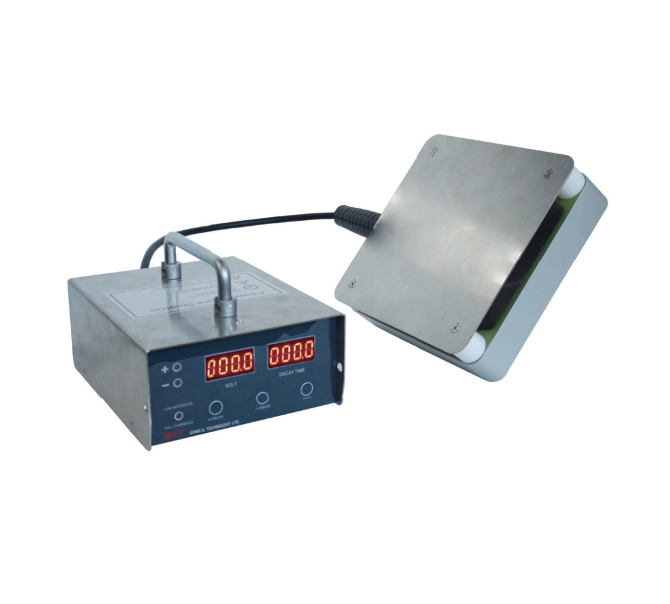

Controller - Dimension: 63mm(H) × 125mm(W) × 154mm(D)
Controller - Weight: < 1.2kg
Plate - Dimension: 150mm(H) × 150mm(W) × 43mm(D)
Plate - Weight: < 0.8kg
Capacitance (Plate): 20pF ± 2pF
Sensor Type: Oscillating chopper type (DIT)
Input Voltage: 12Vdc ± 10%
Input Current: 1A
Battery Specification: NiMH 7.2V 6 pack
Battery Charging Time: 3 hrs (Until full charge)
Battery Use Time: 8 hrs (Full charge statement)
Ion Balance Measurement:
Range: 0 to ±1100V DC or peak AC
Bandwidth (-3dB): DC to 80Hz
Stability: < 10% of initial voltage within 5 minutes (40% RH at 25°C)
Decay Time Measurement:
Start/Stop Accuracy: 2L/min (±10%) [Under 0.1MPa]
Time Resolution: 0.1 sec. (0.1 ~ 999.9 sec)
Range: Start voltage: ±1 ~ ±1000V / Available 1V intervals; Stop voltage: 0 ~ ±999V
Material: Controller & Plate: SUS 1.2T
Functions: (+) Decay-time, (–) Decay-time, Reset
Display: FND 2 set (Plate voltage, Decay time)
Communication: USB communication
Ambient Temperature: 5°C ~ 35°C
Ambient Humidity: RH 40% ~ 80% (No condensation)
Storage Temperature: 0°C ~ +50°C (32°F ~ 122°F)
Storage Humidity: RH 80% under (No condensation)
