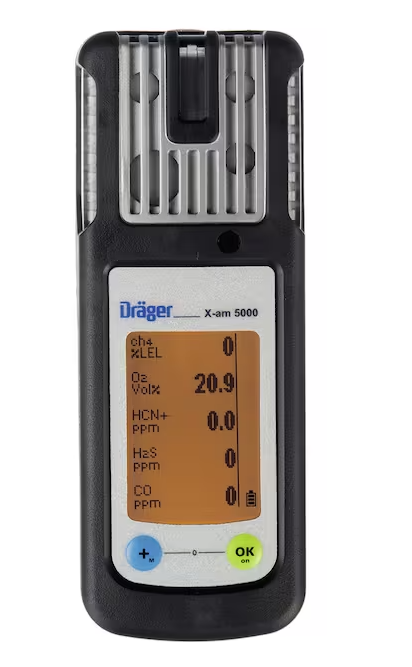

Drager X-am 5000 Multi Gas Detectors (Main unit, not included sensor)

Dimensions (W x H x D): 48 x 130 x 44 mm; 1.89 x 5.12 x 1.73 in.

Weight: 220 – 250 g; 7.8 – 8.8 oz.

Ambient conditions

Temperature: -20 – +50 °C; -4 – 122 °F

Pressure: 700 – 1,300 hPa

Humidity: 10 – 95% r.h.

Alarms

Visual: 360°

Audible: Multi-tone > 90 dB at 30 cm

Vibrating

Ingress Protection: IP67

Operating time: > 12 hours with Alkaline and NiMH; > 13 hours with NiMH HC; without Ex Sensor typ. > 250 hours with Alkaline Battery; when using the Save Energy Mode > 40 hours

Charging time: < 4 hours

Data logger: Can be read out via Infrared > 1,000 hours with 5 gases and a recording interval of 1 value per minute

Pump operation: Maximum hose length 45 m; 147 ft.

Approvals

ATEX

I M1 Ex ia I Ma, II 1G Ex ia IIC T3 Ga, I M2 Ex d ia I Mb,

II 2G Ex d ia IIC T4 / T3 Gb

Performance approval to:

EN 50104 (2002) + A1 (2004); O2

EN 45544; CO & H2S

EN 60079-29-1:2007; Methane to nonane

EN 50271:2010; Software and documentation

CSA:  Class I, Div. 1 Group A, B, C, D T.-Code T4 / T3

IECEx: Ex ia I; Ex ia IIC T3; Ex d ia I; Ex d ia IIC T4/T3

CE-mark: Electromagnetic compatibility Directive 2004 / 108 / EG; EN 50270:2006

EAC: PO Ex ia I X; 0 Ex ia IIC T4 / T3 X

MED: Marine Equipment Directive 96 / 98 / EC

MSHA

Consisting of: basic instrument with an integrated data logger and manufacturer's and calibration certificates.

A functional instrument must include up to 4 sensors and a power supply unit.
