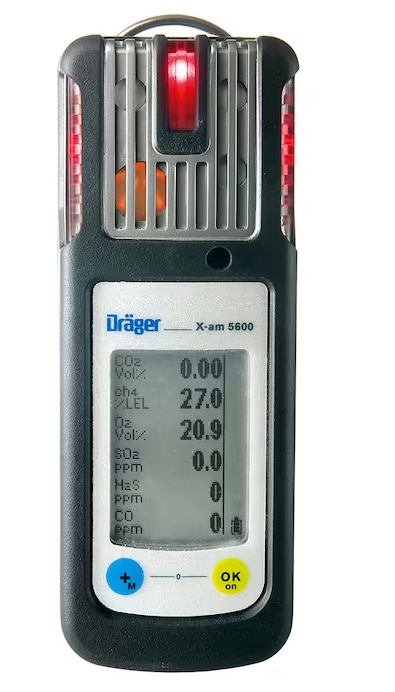

Drager X-am 5600 Multi Gas Detectors (Main unit, not included sensor)

Dimensions (W x H x D): 48 x 130 x 44 mm

Weight: 220 – 250 g

Ambient conditions

Temperature: -20 to +50 °C (-40 to +50 °C for max. 15 minutes)

Pressure: 700 to 1,300 mbar

Relative humidity: 10 to 95 % r.h.

Protection class: IP 67

Alarms

Visual: 360°

Audible: Multi-tone > 90 dB at 30 cm

Vibration

Operating times: ~ 12 h | >250 h without Ex Sensor

Charging time: < 4 h

Datalogger: Can be read out via Infrared > 1,000 hours with 6 gases and a recording interval of 1 value per minute

Pump operation: Maximum hose length 45 m; 148 ft.

Approvals

ATEX:

I M1 Ex da ia I Ma

II 1G Ex da ia IIC T4/T3 Ga

IECEx:

IECExEx da ia I Ma

Ex da ia IIC T4/T3 Ga

CSA (Canada & USA): Class I Div. 1 Group A, B, C, D, E, F, G T.-Code T4/T3

A/Ex da ia IIC T4/T3 /Ga

Measurement performance certificate:

EN 50104 | O2

EN 45544-1, EN 45544-2 | CO & H2S

EN 60079-29-1 | Methane to nonane, XXS H2 HC

CE mark: Electromagnetic Compatibility (Directive 2014/30/EU)

MED: Marine Equipment Directive (Directive 2014/90/EU)

EAC: PO Ex ia I Ma X

Consisting of: basic instrument with an integrated data logger, manufacturer‘s and calibration certificates. A functional instrument must include up to 4 sensors and a power supply unit (option).
