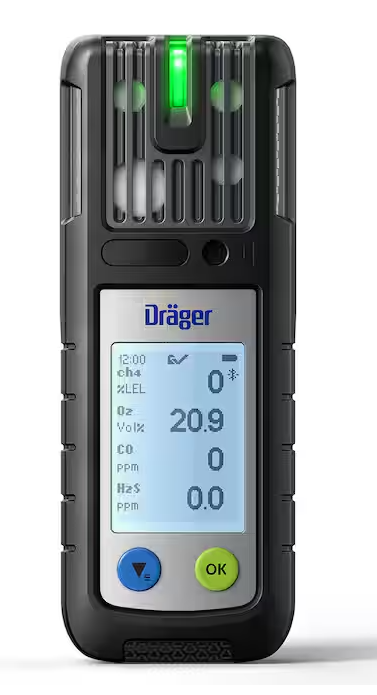

Drager X-am 2800 Ex, O2, CO, H2S Multi Gas Detectors (without charger)

Sensors technical data:

6851900 - CatEx SR (Shock Resistant) (factory setting: methane, other measuring gases selectable)

Sample Gases: methane, additional gases adjustable (propane, pentane, nonane, hydrogen and many more)

Range: 100 % LEL

Resolution:  1 % LEL

Expected service life: > 4 years

Technical data

Dimensions (W x H x D): 130 x 48 x 44 mm (5.12 x 1.89 x 1.73 in)

Weight: typically 220 to 250 g (7.76 to 8.82 oz), depending on sensor equipment

Housing: robust 2-component housing

Dipslay: Matrix display with high resolution

Ambient conditions

Temperature: -20 to+50 °C (-4 to 122 F) (Measurement and storage) | -40 to+50 °C (-40 to 122 F) (Use in potentially explosive atmospheres)

Pressure: 700 to 1300 mbar (Measurement) | 800 to 1100 mbar (Use in potentially explosive atmospheres)

Relative humidity 10 to 95 % r.h. | 5 to 95 % r.h. short term

Protection class: IP68

Alarms

Visual: 3 LED "red" (gas alarms) | 3 LED "yellow" (device alarm)

Pressure: Multi-tone > 90 dB at 30 cm (12 in)

Vibration

Additional technical specifications

Energy supply: NiMH battery (no dangerous goods: UN marking) required during transport, replaceable by user, rechargeable

Bluetooth®: Bluetooth 5.0 (disabled for some countries outside the EU and outside North America, but can be retrofitted. Contact DrägerService).

Operating times: Approx. 12 h (Bluetooth active) | Approx. typical 100 h without Ex-sensor

Charging time: < 4 h

Ready for measurement: < 60 s after switch-on

Data logger: Application of an optimised data compression method with high accuracy and large storage capacity.

(Typically data compression >90 % compared to the traditional data logger concept with adjustable interval)

Approvals

Marking Explosion protection:

ATEX:

I M1 Ex da ia I Ma

II 1G Ex da ia IIC T4 Ga (usable in Ex-Zone 0)

IECEx:

Ex da ia I Ma

Ex da ia IIC T4 Ga (usable in Ex-Zone 0)

CSA (USA & Canada)

CSA approval: cCSAus

Class I, Zone 0, AEx da ia IIC T4 Ga

Class I, Div 1, Groups A, B, C, D

Class II, Div 1, Gr. E, F, G

EAC: Contact Dräger for availability

Directives:

2014/34/EU (ATEX)

2014/53/EU (RED)

2011/65/EU (RoHS)
