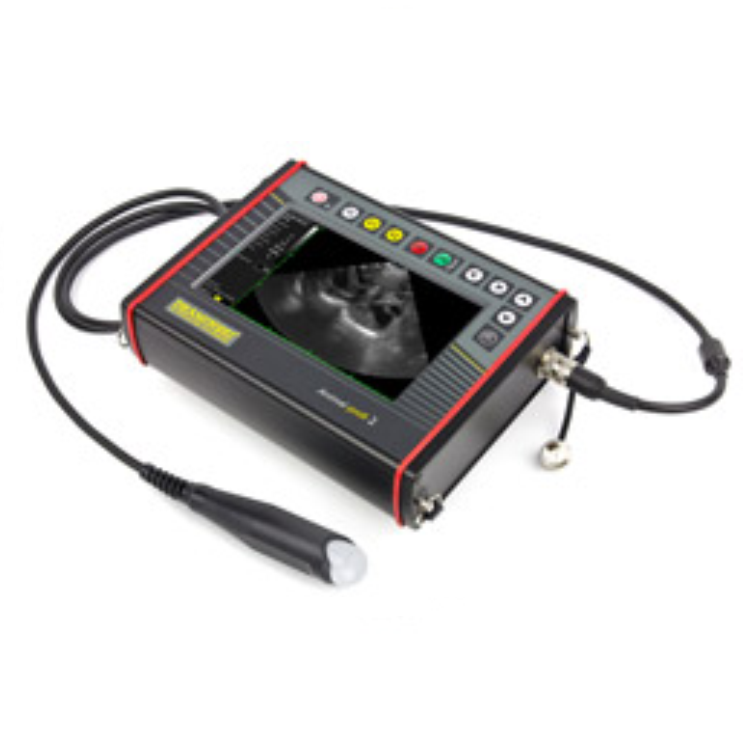

DRAMINSKI ANIMAL profi 2 Ultrasound Scanner (with 1 abdominal down-fire probe mini)

Dimensions: 23x17x6cm

Unit weight: 1530g

Probe weight: 265g

Battery weight: 280g

Image presentation (projection) mode: Real-time imaging, B Mode, B+B Mode, B+M Mode

Image managing:

• Freeze

• Zoom 60 – 200% of original image every 20%

• Full screen function

• Image and cine loop saving in memory (256 images)

• Import of images and cine loops from the memory to the screen

• Measuring (distance, surface, size, embryo age tables)

Type and probe frequency: abdominal down-fire probe mini 5MHz (frequency range 3.5~7MHz)

Penetration depth: 7, 10, 12, 15, 20cm

Scanning angle: 90º

Display: LED backlit LCD, diagonal 7.0”

Functions management: membrane keyboard

Image and cine loop memory: memory capacity for min. 200 images and 200 cine-loops with date and description

Image transmission: to external memory device through USB2.0

Power supply: external package of Li-Ion batteries, 14.4V, 3.1Ah

Continuous operation on fully charged battery: 4h30min.

Current consumption: about 0.71A

Charging time: about 2.5h (charger Type 2541 LI)

Low battery indicator: graphic indicator – coded by colour and sound signal before automatic switch-off

Operating temperature range: -15°C~45°C

Storage temperature range: 0°C~45°C

The set includes:

• a scanner body

• 1 abdominal down-fire probe mini (For AP2_ADFM_PC)

• 2 packs of external Li-Ion batteries

• a charger with a set of wires

• a bottle of USG gel

• a transportation case

• the user’s manual
