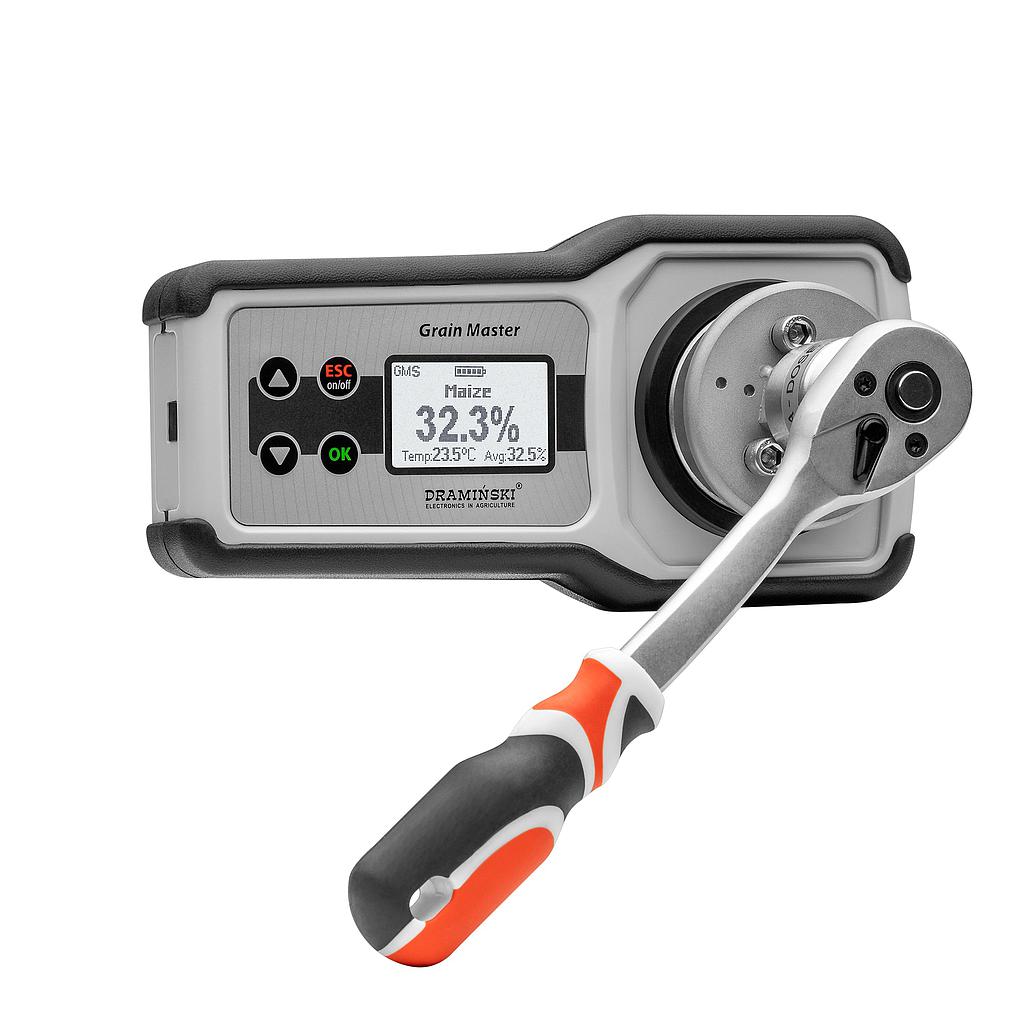

DRAMINSKI GMSV2 Grain Master

Unit weight: 1015 g (with the knob and the battery)

Dimensions: 20.0 x 10.0 x 7.5 cm (without the knob)

Sample loading: manual with the use of a special dispenser

Sample volume: 10 ml

Moisture measurement method: resistance method

Power supply: 1 battery 6LF-22, 9 V

Measurement control: one-chip microcomputer

Power input from 10.8 mA to 33,2 mA (depending on the intensity of the back lit)

Estimated working time on one battery pack:

- 53 hours if backlit is 0%

- 35 hours if backlit is 30%

Battery low indication: graphic

Display: graphic LCD, LED back lit, diagonal 2″

Keyboard: membrane

Measurement resolution: 0.1 °C / 0.1 °F

Data modification: using the keyboard – option modification

Update: via USB

Range of temperature measurement: from  –10°C to +85°C / from 14°F to 185°F

Temperature compensation: is regarded automatically

Accuracy of temperature measurement: ±0.5°C / ±0.9°F

Accuracy of moisture measurement:

- ±0.5% for standard grain

- ±1.0 % in the range from 10% of moisture

- ±1.2% over 10% of moisture and may increase together with the increase of the sample’s moisture

Data storage: internal memory

Internal memory capacity: over 400 species in 40 language versions

Recommended working temperature: from 10°C to 35°C / from 50°F to 95°F

Recommended storage temperature: from 5°C to 45°C / from 41°F to 113°F
