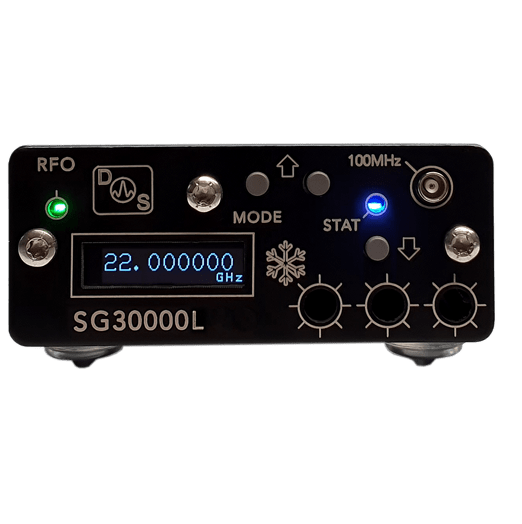

DS INSTRUMENTS SG30000L Standard Signal Generator (0.05 – 30GHz)
Manufacturer: DS INSTRUMENTS Model: SG30000L Guarantee: 12 Month - Contact
Output frequency range covering 0.05 – 30GHz
Low band SMA port: LF-13GHz
High band 2.92mm port: 13-30GHz
Power control (0.1 – 13Ghz): -10dBm to +10dBm (vernier only – no steps)
Power control (13 – 30GHz calibrated): -20dBm to +10dBm (0.5dB steps & vernier)
Max output power in un-calibrated mode: +13dBm typical
Excellent phase noise: -90dBc at 22GHz at 10KHz offset
Harmonic levels: < -12dBc typical
Extremely small frequency step size (2Hz)
External 10MHz reference input (MCX jack)
