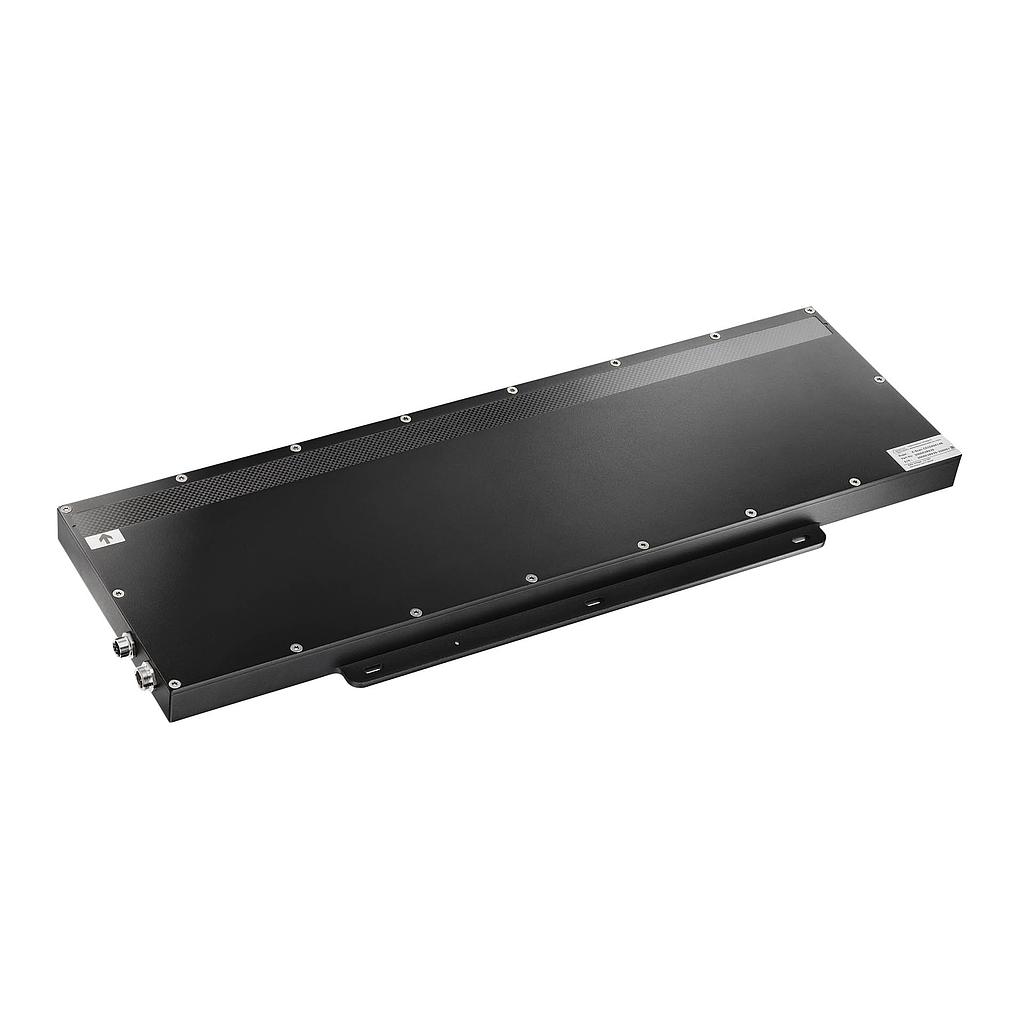

DT Detection Technology C0108 Digital X-ray line cameras (40–160 kVp; 307, 512 mm)

X-ray tube voltage Vp range : 40–160 kVp

Scintillator material : GOS screen

Active area lengths, single module : 307, 512 mm

Total pixel number per module : 384,640

Pixel size (photodiode):  0.7 x 0.8 mm

Scanning speed:

 Maximum scanning speed : 6 m/s

 Integration time range: 0.12 - 100 ms

Line averaging and summing : Yes, up to 256x

Pixel binning : Yes, 1, 2 or 4 pixels

A/D resolution : 16 bits

Overall X-ray response non-uniformity, dark offset subtracted at detector level : +/- 15%

X-ray response linearity:  >99%

Max number of dead pixels : Zero, no dead pixels

Channel electronic crosstalk : < 0.5%

Dynamic range : Typically >16 000:1 depending on sensitivity settings

Sensitivity settings 0.75 - 10.5 pC range; 8 settings; 1.5 pC / step, except between setting 7-8, which is 0.75 pC:

Interface IP67 M12 X-code connector:

EMC compliance : EMC compliance EN61326-1, EN61000-3-2, EN61000-3-3

Ingress protection class : IP67

RoHS compliance : Yes

Operational voltage and power : 24 VDC, max 35 W per module; Industrial power supply units available from DT

Operational temperature and humidity : 0–50 °C, 30–93% (non-condensing)

Storage temperature : -10–60 °C

Lifetime under X-ray : Typically 100 kGy

Weight per module:  5 to 10 kg

Power on time recording : Yes, up to 100,000 hours
