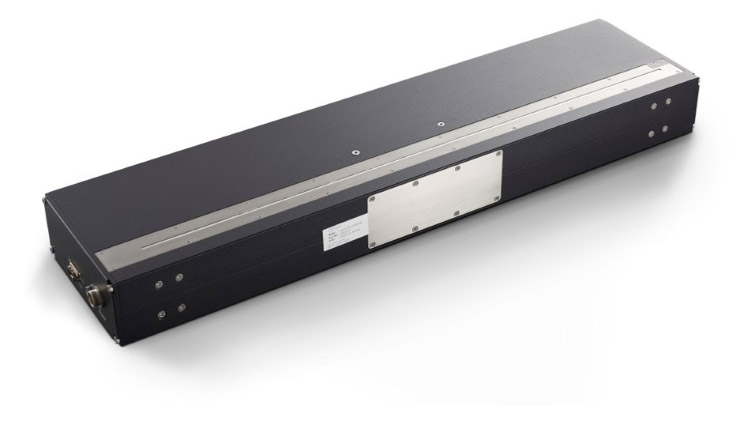

DT Detection Technology X-Scan P0108 X-ray dual energy linear array detector (512/614/820mm, 0.72 x 0.8 mm)

X-ray tube voltage Vp range : 40-110 kVp

Scintillator material : Low energy: Phosphor screen; High energy: Pixelated ceramic

Active area length : 512/614/820mm

Number of pixels : 1280 to 2048

Pixel pitch (spacing) : 0.8 mm

Pixel size (photodiode) : 0.72 x 0.8 mm

Maximum scanning speed : 400 cm/s

Integration time range : 0.2–128 ms

A/D conversion resolution : 16 bits

Dynamic range : up to 16000:1

Sensitivity settings : 8 levels, Charge range 0.75 to 10.5 pC/Line, Separate setting for Low/High and for each sensor element.

Interface : Gigabit Ethernet or Camera Link

Linearity : > 99%

Operational voltage and power : +12V or +24V DC, 25 W Max

IP classification : IP50

Operational temperature and humidity : 0–40°C, 30–80% RH

Storage temperature: -10 … +50°C

On-board calibration : Yes

Bad pixel correction : Yes

Pixel Binning : Yes, up to 4x

Line averaging and summing : Yes, up to 256x

Power on time recording : Up to 100,000 hours recording

Remote firmware update : Yes

LE/HE registration SDK : Yes

EMC and RoHS compliance:  Yes
