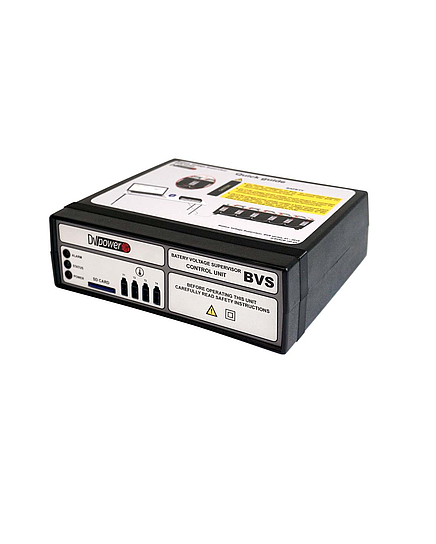

DV Power BVS-CU Battery Voltage Supervisor

Mains Power Supply

• Input voltage: 90 – 264 V AC, 50/60 Hz

• Input power: 110 VA

Measurement

Cell Voltage (Measuring range/ Resolution): ± 30 V DC/ 1 mV

String Voltage (Measuring range/ Resolution): ± 600 V/ 1 mV

String Current (Measuring range/ Resolution): ± 1 V/ 0.1 μV

• RS485 serial communication

Communication with PC

• USB

• Bluetooth

Memory

• Internal SD Card: 2 GB SD

Environment conditions

• Temperature: -20 °C to +55 °C /-4 °F to +131 °F

• Maximum relative humidity: 95 % for temperatures up to 31 °C/88 F, decreasing linearly to 40 % relative humidity at 55 °C/131 F

Dimensions (L x W x D): 206 mm x 180 mm x 64 mm/ 8.11 In x 7.08 in 2.51 in

Weight: 0.78 kg / 1.7 lbs
