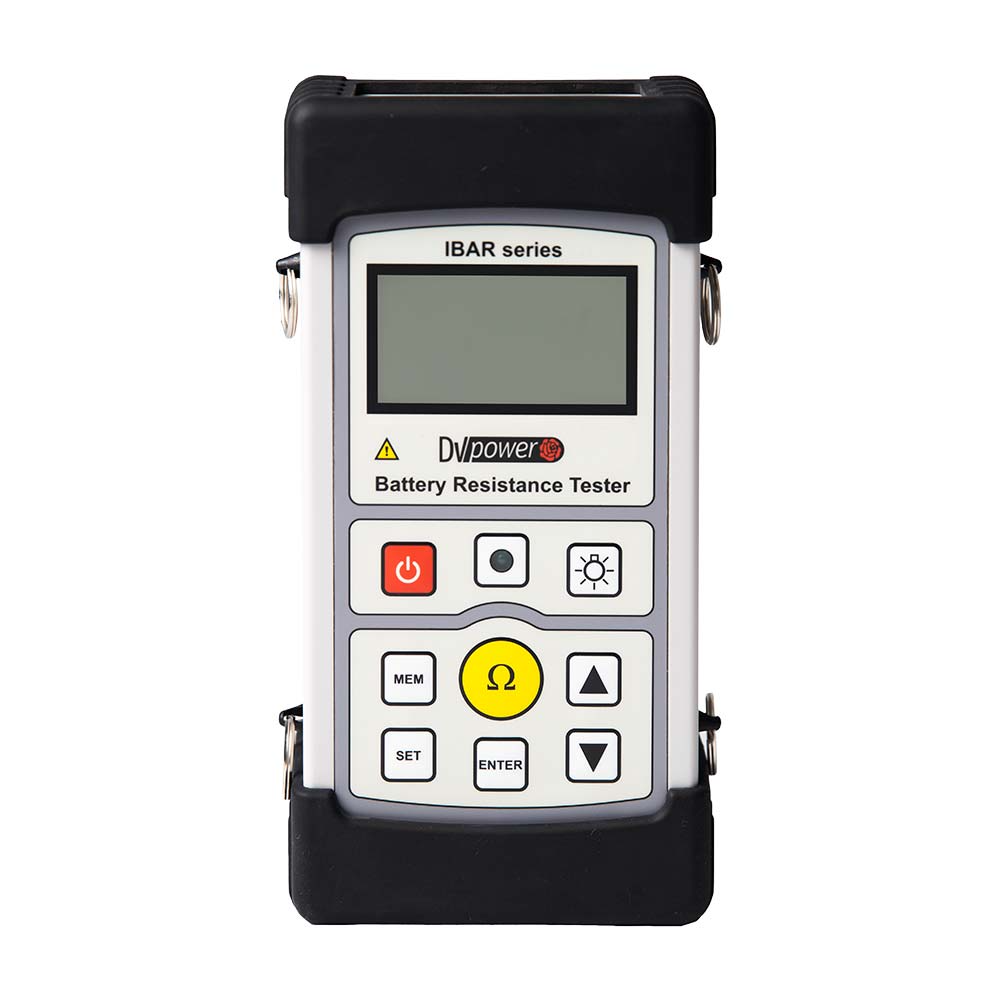

DV Power IBAR series Battery Resistance Tester

Battery

• Type: 2 Cells – 2900 mAh Li-Ion

• Voltage: 7.4 V

• Charge time 6 hours

AC Adapter

• Input voltage: 90 to 264 V AC, 50/60 Hz

• Output voltage: 12 V DC

• Output current: 1 A

Resistance measurement (Range/ Test current/ Accuracy)

<5mΩ(1 uΩ res.)/ 150 mA/ ±1.0%rdg ± 0.1%FS

5mΩ -50 mΩ(10 uΩ res.)/ 150 mA/ ±0.8%rdg ± 0.1%FS

50 mΩ -500 mΩ(100 uΩ res.)/ 15 mA/ ±0.8%rdg ± 0.1%FS

500 mΩ - 5 Ω(1 mΩ res.)/ 1.5 mA/ ±0.8%rdg ± 0.1%FS

Display

• Type: FSTN-LCD 2.8 in

• Format: 128 x 64 Dots

• Outline dimension:

• 70.0(W)x50.0(H)x5.8(T)mm

• Active Area: 63.95 (W) x 31.65 (H) mm

Communication

• USB: Device to PC

Memory

• Internal flash memory: 64 Mbit

Real time clock

• Precision: ±5 seconds per month

• Calendar: 100 year with leap year detection

• Time retention: 10+ years (battery removed)

Environment conditions

• Temperature: -10 °C to +45 °C / 14 °F to +113 °F

• Maximum relative humidity 95 % for

Temperatures up to 31 °C, decreasing

Linearly to 40 % relative humidity at 55 °C

Dimensions and Weight

• Dimensions (L x W x D): 223 mm x 98 mm x 46 mm/ 8.77 in x 3.85 in x 1.81 in

• Weight: 0.5 kg / 1.1 lbs
