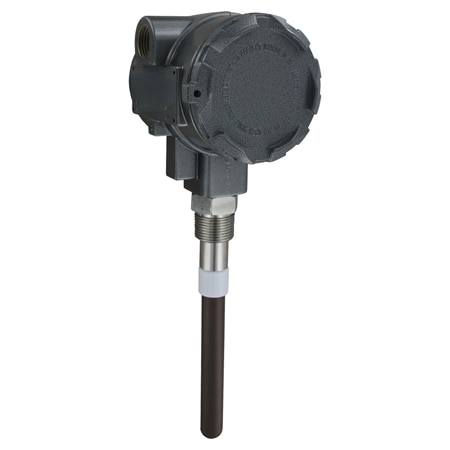

Dwyer PMT2-10-A-U2 Dust Emissions Transmitter – 4-20 mA Signal, 6 Sensitivity Ranges (NPT Male, 3/4 in, Two 1/2˝ NPT Female)
Manufacturer: Dwyer Model: PMT2-10-A-U2 - Contact
Accuracy: ± 5 %
Materials: Aluminum
Compliance: UL
Probe Length: 10 in
probe-length: 10 in
Averaging Time: 1 to 360 s (10 selectable options)
Proof Pressure: Up to 30 psi
Supply Voltage: 12 to 28 Vdc
Terminal block: Removable (16 to 20 AWG Wire)
Compliance Note: UL Listed Intrinsically Safe for Class I, Groups C and D; Class II, Groups E, F and G; Class III; Class I Zone 0 AEx ia IIB T4 Ga; Class I Zone 0 Ex ia IIB T4 Ga
Detection Range: 5 to 5000 pA
Electrical Output: 4 to 20 mA
Enclosure Ratings: IP66, UL Type 4
Materials, Wetted: 316L Stainless Steel, PTFE, Silicone
Supply Power Type: DC
Media Compatibility: Air, Argon, Compatible Gases, Nitrogen
Electrical Connection: Two 1/2˝ NPT Female
Particulate Size, Max: 0.3 µm and higher
Process Connection Size: 3/4 in
Process Connection Type: NPT Male
Process Temperature, Max: 248 °F
Process Temperature, Min: -40 °F
Operating Temperature, Max: 145 °F
Operating Temperature, Min: -40 °F
