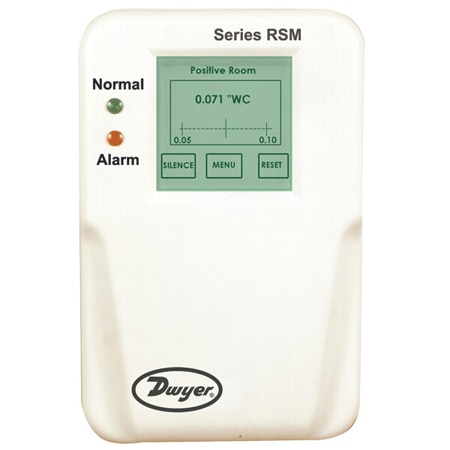

Dwyer RSM-1-A Low Differential Pressure Monitor for Secure Environments - Graphical, NEMA 1 (± 0.5 %, 0.05 inH₂O, Barbed Fitting, 3/16 in)
Manufacturer: Dwyer Model: RSM-1-A - Contact
Width: 5.4 in
Height: 8 in
Length: 1.8 in
Weight: 1.5 lb
Accuracy: ± 0.5 %
Mounting: Mount to standard double gang metal electrical box using 4x4" plaster ring adaptor
Materials: Fire Retardant Plastic
Compliance: CE, CSA
Switch Type: SPST
Accuracy Note: ± 0.5% FS
Output Detail: 2-Wire: 4 to 20 mA; 3-Wire: 0 to 5 Vdc, 0 to 10 Vdc;Selectable 4-20 mA (2-wire), 0-5 VDC (3-wire), or 0-10 VDC (3-wire)
Output Signal: Current, Voltage
Pressure, Max: 0.05 inH₂O
Pressure, Min: -0.05 inH₂O
Data Interface: BACnet MS/TP ASC Optional
Supply Voltage: 18 to 32 Vdc
Loop Resistance: 0 to 510 Ω
Number of Wires: 2, 3
Pressure Limits: -15 inH2O to 15 inH2O
Thermal Effects: ± 0.03% FS/°F
Enclosure Ratings: IP20, NEMA Type 1
Power Consumption: 5 W
Relative Humidity: 5 to 95% RH (non-condensing)
Supply Power Note: Order code A (24 VAC): 18-32 VAC, 50 to 60 Hz; Main supply voltage fluctuations up to 10%.
Supply Power Type: AC
Media Compatibility: Air, Gases, Nitrogen, Oxygen
Electrical Connection: Screw Terminal
Enclosure Ratings Note: NEMA 1 (IP20) rated for indoor applications
Process Connection Note: Barbed Fittings for 3/16˝ ID Tubing.
Process Connection Size: 3/16 in
Process Connection Type: Barbed Fitting
Operating Temperature, Max: 120 °F
Operating Temperature, Min: 32 °F
