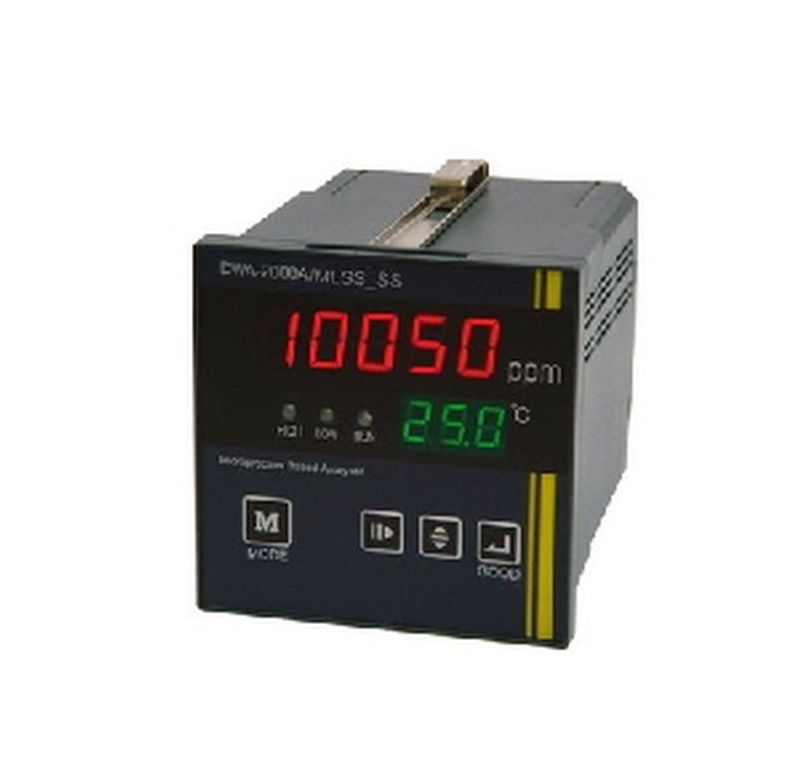

DYS DWA-3000A-CD Analyzer and control of EC-4 points SET
Manufacturer: DYS Model: DWA-3000A-CD - Contact
Function / Features
- Certificate : New Excellent Product (NeP)
- Certificate : Certificate of Patent
- Certificate : Certificate of CE
- English Display
- Real Time Trend Graph Function
- Relay Contact output - HH, L, L, LL & Cleaning Contact
- Simple Operation by 7 Keypad Button
- Large Size LCD Screen (160*128)
- Back-Light LCD
- Isolated(4~20, 0~20, 0~24 mA DC) Output Transmission
- RS-232(Std.), RS485(option) Communication
- Automatic Cleaning Control(Air jet, Water jet) Function
- Wall Mounting / 2B pipe Stanchion Mounting
- Microprocessor-based Digital Program Controller
Specifications
- Code No. : 413130001CD
- Model : DWA-3000A-CD
- Channel : Single channel
- Range : 0 ~ 2,000 uS/cm or user spec’.
- Resolution : 0.01
- Power : AC 110/220V, 50/60Hz, 3VA
- Accuracy : ± 1% of F.S
- Repetition & Reappearance : ± 1% of F.S
- Response time : 30 sec(90% saturation)
- Analog output : 4~20mA DC(STD.)
- Digital output : RS-232C, RS485
- Relay output : HH, H, L, LL & Cleaning Contact
- Display : Trend graph, measuring value, Temp
- Humidity : max. 90%(non-condensing)
- IP Rating : IP65
- Size : 240(W)x180(H)x115(D)
- Installation : Wall mounting
OPTION:
EC ELECTRODE |
|
PRICES (USD) |
EC ONLINE POWER POLE FOR WATER AND PURE WATER, FAMILY WITH STAINLESS STEEL |
1 |
210 |
EC POWER POLE ONLINE MULTI-PURPOSE, WITH BODY STAINLESS STEEL |
1 |
210 |
EC POWER POLE ONLINE MULTI-PURPOSE, WITH BODY STAINLESS STEEL |
1 |
280 |
