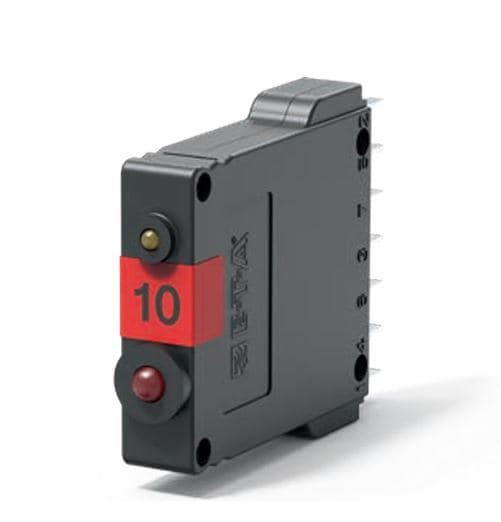

E-T-A Circuit Breakers E-1048-8I4-C3D1V0-4U3-7.5A SSR The Smart Power Relay E-1048-8I.- is a remotely controllable electronic load disconnecting relay with three functions in a single unit: electronic relay, electronic overcurrent prodection, status indication. The 7 pin INLINE version i
Manufacturer: E-T-A Circuit Breakers Model: E-1048-8I4-C3D1V0-4U3-7.5A - Contact
Width: 11.5 mm
Height: 56 mm
Length: 50 mm
IP Rating: IP30
Output Type: MOSFET
Input Current: 10 mA
Mounting Style: Socket Mount
Relay Contact Form: 1 Form A (SPST-NO)
Load Current Rating: 7.5 A
Load Voltage Rating: 24 VDC
Control Voltage Range: 8.5 VDC to 32 VDC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
