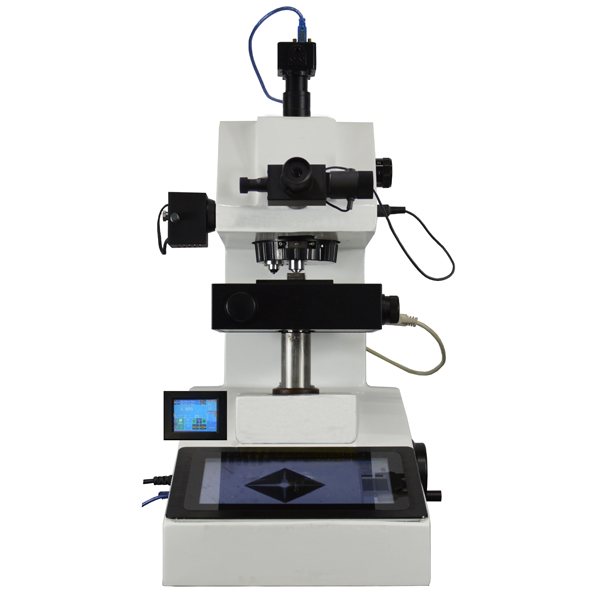

EBP DVS-1XYZ-3 Fully automatic Micro hardness testing machine

Motorized X-Y working table

Table size:200*200mm

Drive by motor:Working table can working automatically by software control (X-Y)

Maximum moving distance:50*50mm

Minimum moving distance:1μm

Moving speed:adjustable

Automatic process:

1) Automatic turret (objective lens — indenter—objective lens shift automatically, motorized turret)

2) Test force automatic loading - Hold loading - unloading automatic

3) X-Y working stage move automatically (motorized X-Y table)

4) Software with automatic measuring function

5) Automatic focus (working table motorized up and down)

Follow standardGB/T4340, ASTM E-384, ISO/DIS 6507-2, JIS B-7734

Test Force:10g(0.098N), 25g(0.245N), 50g(0.49N), 100g(0.98N) 200g(1.96N), 300g(2.94N), 500g(4.9N), 1000g(9.8N)

Hardness scale:HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Holding time:1-99 seconds, each step: 1 second

Indenter:It is a rectangular pyramid diamond indenter (angle 136°±0.5°)

Magnification:10X (observe) and 40X (measure) Objective lens

10X digital eyepiece with encoder

Total: 100X, 400X

Industrial computer:10.1 inch touch screen smart computer with high identification Intel I CPU, RAM 4GHz, 60G

Test space:100*115mm (Height * Depth)

Machine Size:520*300*560mm (length*width*height)

Light source:Halogen lamp (imaging effect is more real/clear/light intensity can be adjusted)

Data output:

1) Machine with built-in printer can print the test data directly

2) Machine with USB interface, it can export test data to USB flash

3) Machine can connect with printer and print test data directly

NG-OK judgement function:Setting min & max limit, machine will automatically process judgement function, test data mark NG or OK

Hardness Conversion:Convert to any hardness, the hardness scale must meet the national standard.
