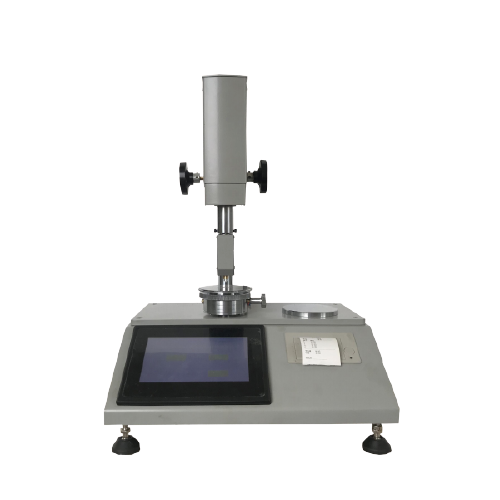

EBP IRHD-M Semi Automatic Micro IRHD Rubber Hardness Tester (0.1IRHD; 30-85IRHD)
Manufacturer: EBP Model: IRHD-M Guarantee: 12 Month - Contact
Y Axis maximum testing range: 30mm
X Axis maximum testing range: 120mm
O-rings minimum diameter: 0.8mm
Flat test piece minimum thickness: 1mm (less than 1mm can layup)
Test accuracy: 0.1IRHD
Test: Method M (Microtest)
Diameters (mm):
- Ball: 0.395±0.005
- Foot: 3.35±0.15
- Hole: 1.00±0.15
Force on Ball
- Contact (mN): 8.3±0.5
- Indenting (mN): 145±0.5
- Total (mN): 153.3±1.0
Force on Foot (mN): 235±30
Test range (IRHD): 30-85
Dwell time (s): 30
Details
- Quality Engagement
- Easy change and return
- Delivery Avaliable
- Favorable payment
