General

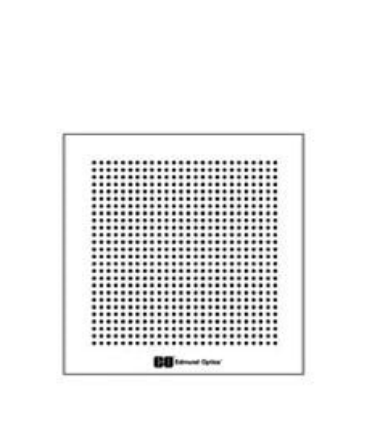

Type: Chrome onGlass
Physical & Mechanical Properties
Dot Diameter (mm): 0.500
Dot Spacing (mm): 1.000
Overall Accuracy (mm): ±0.002
Pattern Size (mm): 50 x 50
Dimensions (inches): 3 x 3
Thickness (mm): 1.50
Dot Diameter Tolerance (mm): ± 0.002
Dot Spacing Tolerance (mm): ± 0.002 Center to Center
Flatness (inches): 0.001
Optical Properties
Coating:
Reflective First Surface Chromium
Rabs = 50% ±5% @ 550nm
Substrate: Soda Lime Float Glass
Optical DensityOD (Average): >3.0
Surface Quality: 40-20
