Applications
Geotechnical soil research
Trafficability or load bearing capacity research
Specifications
Battery life time: 2 years
Diameter (D) and/or size (LWH): Sensor D 14 mm
Maximum measuring depth: 10 m
Measuring principles: Conductivity
Measuring range: 10 m
Power supply: Battery
Product material: Stainless steel, PVC, other material
Reading accuracy: 1 cm
Registration type: Manual
Rod or Cable length: 10 m
Rod or cable operated: Cable
Package size: 30 x 25 x 15 cm
Weight: 5.5 kg
Description
The Royal Eijkelkamp penetrologger CBR is very similar to the standard 06.15.SA set. However, in the CBR version it measures, by a static penetration test, directly in CBR values using the standard CBR cone.
The standard California bearing ratio (CBR) is a penetration test for evaluation of the mechanical strength of road subgrades and basecourses. It is the basis for determining the thickness of soil and aggregate layers used in the design of roads and airfields. A soil’s CBR value is an index of its resistance to shearing under a standard load compared to the shearing resistance of a standard material (crushed limestone) subjected to the same load.
Measuring the resistance to penetration of the soil in a large number of measurements is best done with an electronic penetrometer in combination with a data logger, where the data can be saved and processed immediately in the data logger. Royal Eijkelkamp has developed an electronic penetrometer with a built-in data logger for storing and processing a large number of measurement data (1500 measurements). The camouflage coloured rucksack makes it very suitable to carry in the field.

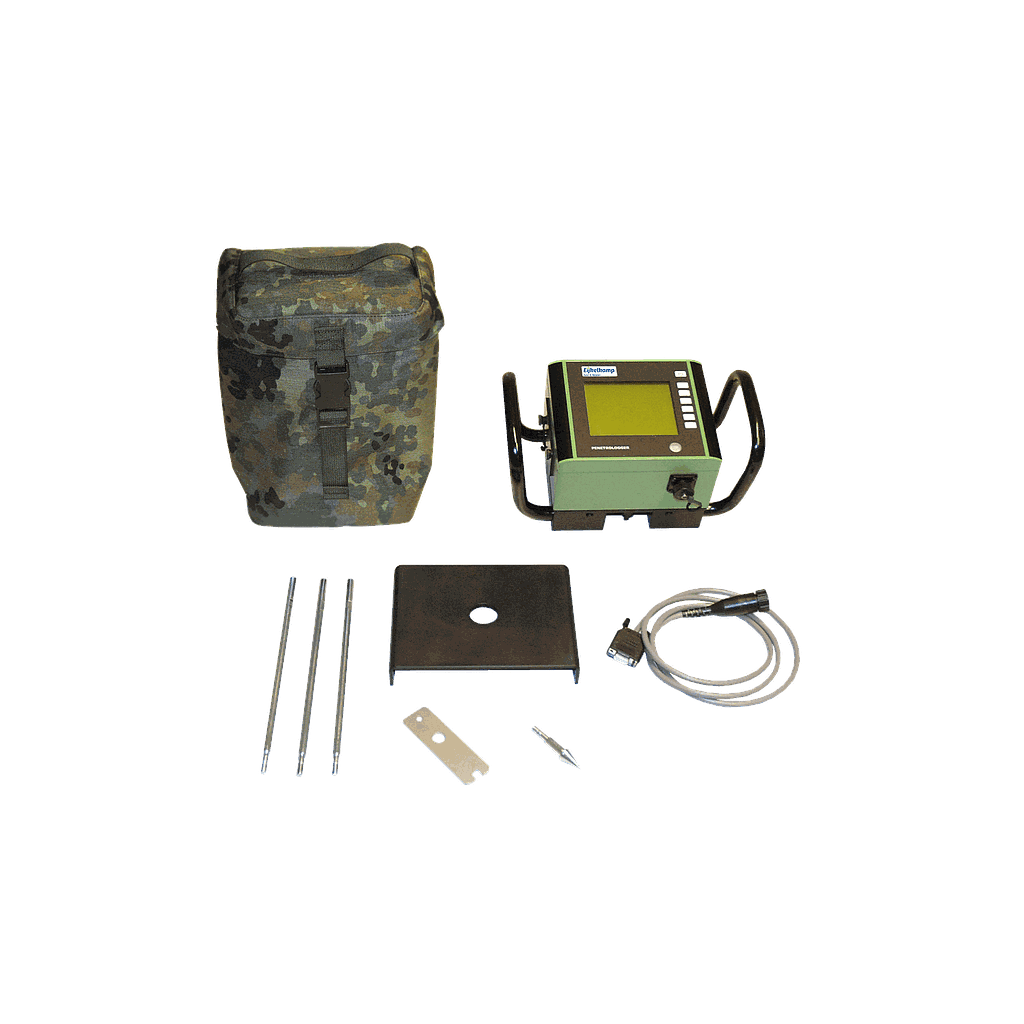

Set contains
Penetrologger CBR
Probing rod (3 parts),
2 pcs Cones CBR 1,3cm2, 30°
Depth reference plate
CBR penetrologger software
RS232 cable rugged + adapter RS323 to USB
Driver software for converter cable
Penetroviewer software, downloadable below
Accessories
4 AA batteries
Camouflage coloured rucksack
Brochure
Manual
