Applications
Soil physical laboratory research
pF determination in the lab
Irrigation research
The sandbox and the sand/kaolin box can be used together to cover a larger pF-range (0 - 2.7). A filled box will last several years, if it is inundated with water after each test. A copper ring prevents algal growth in the instrument.
Specifications
Maximum number of samples: 40
Measuring range: 2.0 - 2.7 pF
Reading accuracy: 0.01 bar
Sample specification: undisturbed
Sample stored in: ring
Measured parameters: pF
Voltage: 110 - 240 volt
Power supply: line voltage
Package size: 145 x 62 x 52 cm
Weight: 108 kg
Description

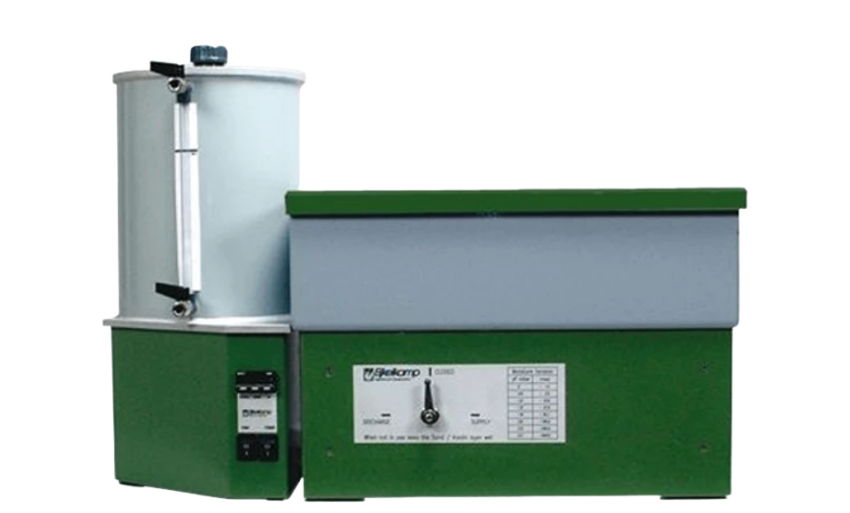

When researching the quantity of moisture available in the soil for plants and trees to grow, it's essential to determine the moisture characteristic (or pF-curve). The sand/kaolin box is suitable for a maximum of 40 soil sample rings and uses undisturbed samples of 53 or 60 mm in diameter.
The standard set for pF determinations of pF 2.0 - 2.7 (0.1 - 1 bar) contains:
Sand/kaolin box with control panel
Electronical suction level control system (pressure range 0 - 600 hPa)
Pressure sensor
10 litre tank
Containers with synthetic sand
Container with kaolin clay
Various accessories
Method
The test is done on undisturbed soil samples, which can be taken with a soil sample ring kit (07.53.SC).
Firstly, the samples are fully saturated and subsequently weighed with respect to the increasing values of the moisture tension. These moisture tensions are obtained by creating a series of under- and overpressure. Weighing of the samples after each adjustment yields the moisture content for each moisture tension.
Additional requirements
Correct use of this instrument also requires a soil sample ring kit, cases with soil sample rings and aluminium soil sample boxes. A balance and a drying oven are part of the minimum equipment for preparation of the samples. The laboratory table on which the measuring instrument is placed should be level and isolated against vibration.
