Applications
Water level measurements of electrically conducting liquids in boreholes, wells and tanks (in ATEX-free zones only)
Long-term observations for periodic level soundings
Continuous water level registration during pumping tests
Additional sounding of well depths using the bottom sensor (accessory)
Geohydrological research
Water quantity research
Specifications
Diameter (D) and /or size (L*W*H): Sensor D 12 mm, L 70 mm
Maximum measuring depth: 10 m
Measured parameters: Level
Measuring principles: Conductivity
Battery: 9 volt DC with, Lifetime 2 years
Product material: Stainless steel and electroplated brass (easy to clean)
Safety class for probe: IP 68, permanently pressure resistant
Safety class measuring tape: IP 64, spray water resistant
Reading accuracy: 1 cm
Registration type: Manual
Recommended storage temperature: +5°C up to +30°C, for battery protection
Package size: 11x11x11 cm
Weight: 420 g
Description

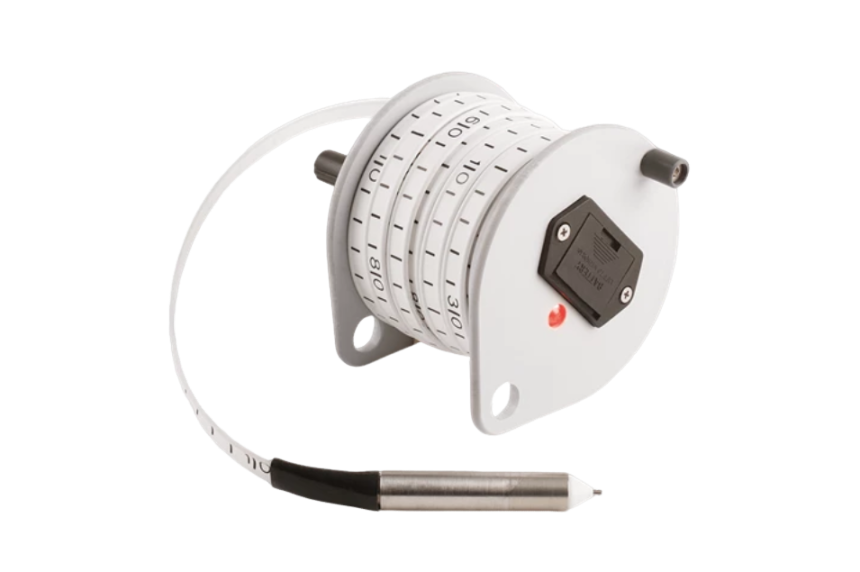

The water level meter is part of the standard equipment for measuring the groundwater level. It has a stainless steel probe connected to a 10-metre tape with centimetre graduations. The probe is easy to clean. In addition, it is a compact device and therefore easy to take along. In short, the perfect device for quick, simple and solid measurements of the water level.
The water level sensor is easy to use; when the probe comes into contact with a conductive liquid, it will emit a clear sound and light signal. If the cable is then lifted slightly, the signal stops and the depth can be read directly from the measuring tape (accuracy: ± 1 centimetre).
