Eijkelkamp 12.12.SA Submersible pump set - low-cost (8l/min)

Name: Eijkelkamp 12.12.SA Submersible pump set - low-cost (8l/min)
Brand: Eijkelkamp

ManufacturerEijkelkamp(View more products from this manufacturer)

Model12.12.SA

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Fit for silt loaden water: Yes

Maximum pumping capacity: 8l/min

Maximum sample depth: 14 m

Power supply: Battery

Sample diameter: 40 mm

Package size: 40 x 40 x 25 cm

Weight: 11 kg

Applications

Monitoring well installation; can be used in small monitoring wells of 40 millimetres

Water quality research

Monitoring water quality

Anaerobe sampling

Water sampling

Ground water sampling

Description

This low-cost submersible pump set, which includes ‘Gigant’ and ‘booster’ pumps, is suitable for use in monitoring wells. Both Gigant and booster pumps are small centrifugal pumps with small but powerful motors. This allows them to fit in narrow monitoring wells of 40 millimetres. The Gigant type (12.12.06) is fitted with a bottom filter. The Booster type (12.12.08) is suitable for in-line installation between 10 x 12 or 12 x 16 millimetre tubing. The Gigant pump can push water to a height of 10 metres. The booster pumps have the same capacity and can be applied as boosters. By fitting one or more booster pumps directly over a Gigant pump the pressure can be raised to 20, 30 or more metres. The pumps can be used for purging a new sampling filter. Connecting the pumps to the regulator of the peristaltic pump 12 VDC allows for setting a relaxed speed. This allows the pumps to be used also for taking samples, as the regulator can power a maximum of two pumps with a maximum sampling depth of approximately 12 metres. The low price of the pumps makes it possible to use them only once. This prevents the risk of cross-contamination. The pumps are made from non-toxic ABS plastic and are fitted with a stainless steel impeller.

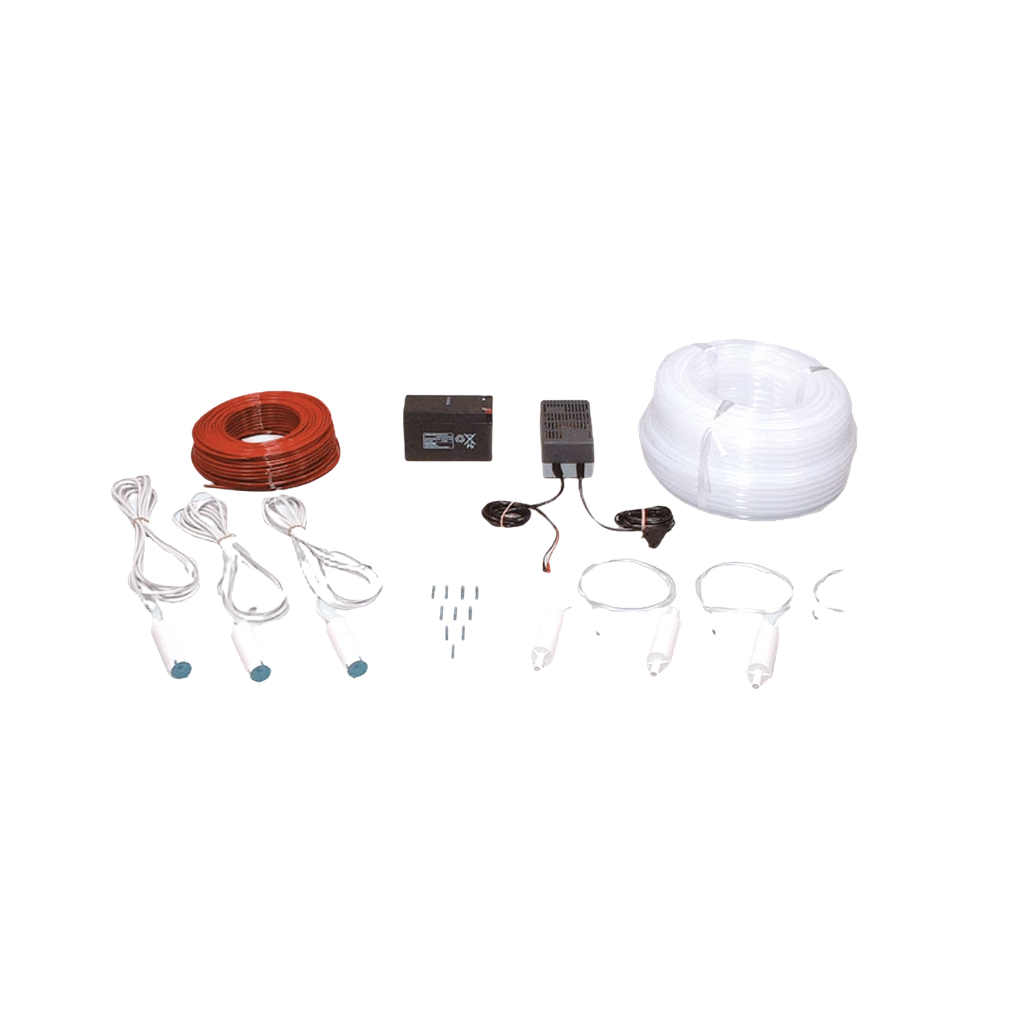

Set contains

Submersible pumps Gigant (3 pumps)

Booster pumps (3 pumps)

Roll of extension cable

Sealed crimp splices (to make a waterproof cable extension)

Roll of polyethylene sampling tube

Battery with battery charger

Manual
