Eijkelkamp 12.40 Liquid layer sampler - rod operated, standard (0.9 / 1.8 m)

Applications

Sewage water research

Liquid layer sampling

Water sampling

Specifications

Liquid layer sampler - rod operated, standard

Maximum sample depth: 0.9 / 1.8 m

Point or profile: Profile sampling

Rod or cable operated: Rod

Sample diameter35 mm

Sample length: 90 / 180 cm

Sample volume: 670 / 1370 ml

Package size: 220 x 21 x 17 cm

Weight: 11.3 kg

Weight of the set: 2 - 41 kg

Description

The translucent sample tube allows for immediate research in the field of for instance the thickness of the layers in the sample. The sample taken can be safely transported in the sample tube which is placed in the liquid proof transport tube. Applying the silicone piston provided it is also possible to sample thicker, viscous fluids or even a sludge layer while maintaining the thickness of the layers.

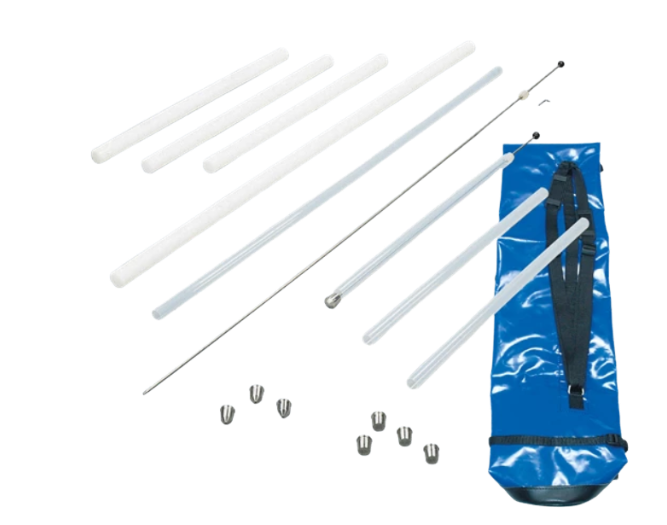

Set contains

PTFE sample tubes of different lengths

Operating rods with knob and adjustable piston

Transport tubes

Top- and bottom stops

Sturdy carrying bag

Manual
