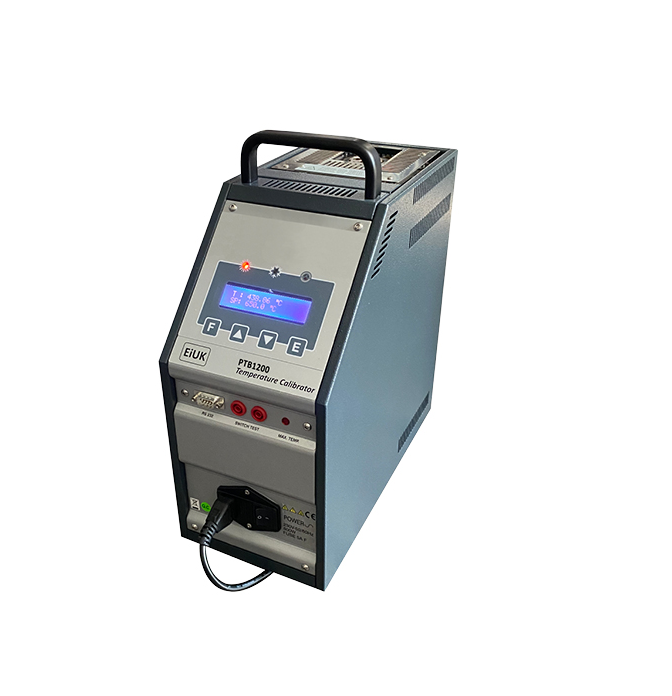

EiUK PTB 1200 High Temperature Portable Thermocouple Calibration Furnace (100 ~ 1200° C)

Temperature Range:

Ambient Temperature : 100°C to 1200 °C

Stability ( measured over 30 mins): ± 0.15 °C

Accuracy:

with Internal Reference Sensor: ± 3 °C

Uniformity:

Axial ( from 0 to 40 mm from the bottom): ±1.3°C  @ 1000 ºC

 ±0.4°C @ 200 ºC

Display  Settings:

Set Point Range: Ambient °C to 1200 °C

Resolution:  0.01º C/F full range

Units: user-selectable C, F

Calibration Volume:

Effective Immersion depth: 190 mm

Insert Diameter: 34 mm

Standard Insert: Inconell , 34 x 160 mm, with 4 holes all 125 mm depth plus 65 mm ceramic Insulator

 Ø 4.8 x 125 mm

 Ø 6.4 x 125 mm

 Ø 9.5 x 125 mm

 Ø 12.8 x 125mm

Heating Rate: 15 ºC/min

Cooling Rate: 7 ºC/min

General:

Computer interface: RS 232 as standard ( UBS adapter supplied as option) and EIUK software included

Switch Test: Yes With automatic log of switch open and switch closed

Ramp: Yes fully programmable

Weight: 10.5 Kg

Dimensions: 165 x 355 x 390 mm

Power Requirement: 115 o 230 V – 50/60 Hz

Power: 700 VA @ 230 V

Scope of Supply:

Each PTB1200 is supplied with: Power Cable, USB cable, switch test lead, standard insert, insert removal tool, traceable calibration certificate and instruction manual:
