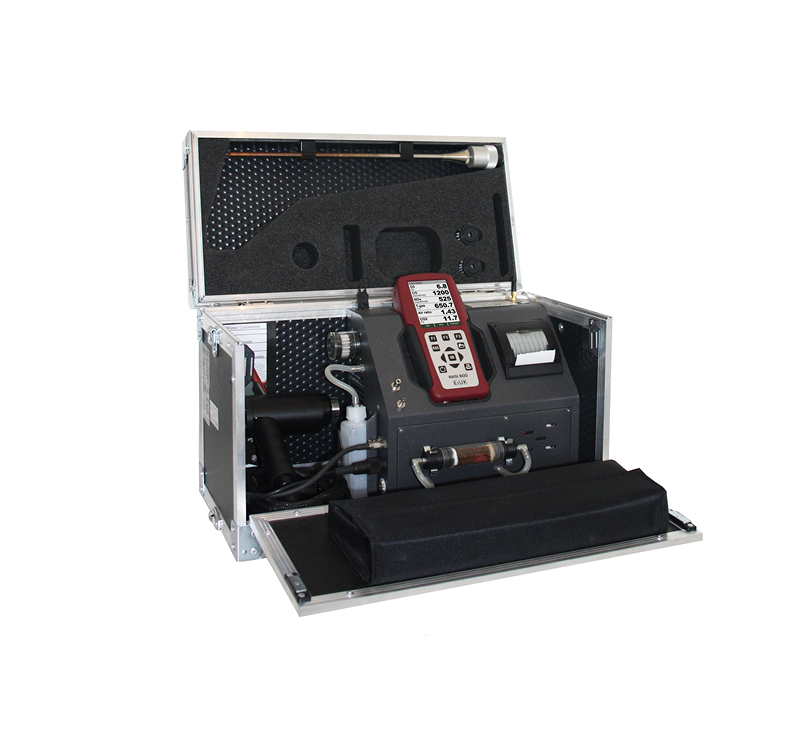

EiUK RASI 800 Portable Emissions and Exhaust Gas Analyser

Displayed Emission Value

NOx/CO/SO2 in mg/m3 and ppm with 02% reference ( user selectable)

Other parameters

Lamba ( Air ratio): 1.00 to 9,99

Pressure: -300 to 300 mbar (draught and differential pressure)

Temperature: -50 to 1200 C

Sample Gas Conditioning

Gas Sampling pump

Integrated high performance peltier gas cooler with continuous condensate draining pump

Solenoid valve for auto-zero in stack ( fresh air inlet) with user definable intervals

Inline filter

General Specifications

Operating Temperature: 5 to 45 C

Storage Temperature: -20 to 50 C

Humidity: 95 % Max non-condensing

Protection: IP 20

Power Supply/Main: Li-Ion rechargeable battery /100-240 VAC switching

Main: 100-240 VAC switching

Weight and dimension: 6 Kg, 470 x 314x 235 including case, probe and remote wireless unit

MCERTS approval for: 02, CO, NO, NO2, SO2 and CO2%

Display: 3” Inch TFT 6 line colour display with zoom function

Operating temperature: 5 to 45 C

Storage Temperature: -20 to 50 C

Humidity: 95 % non condensing

Battery: Li-Ion

Battery Life: 30 hours

Charging: Inductive trough base unit or via USB

Memory: Internal or SD Card ( 2 GB)

Digital Communication: USB port

Blue tooth Range: 100 metre in free AIR
