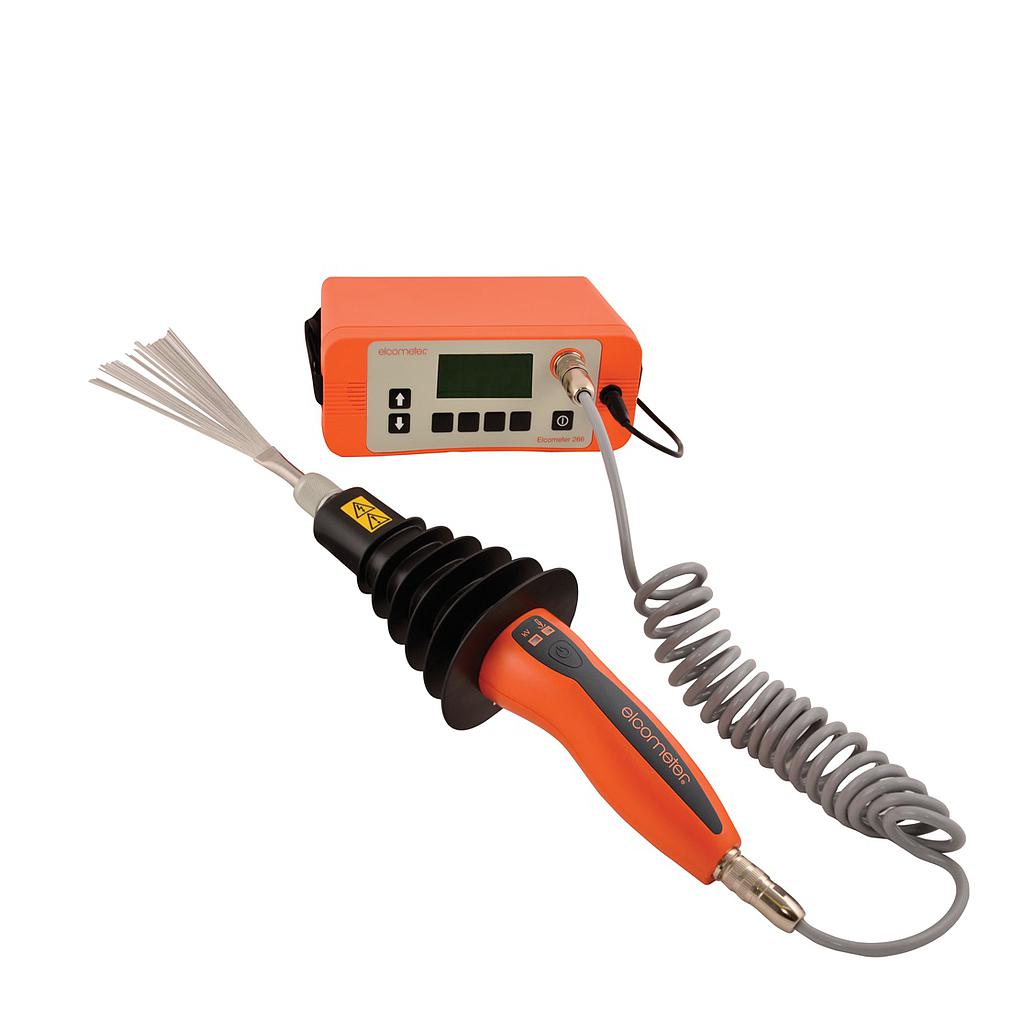

ELCOMETER 266 DC Holiday Detector (0.5kV-30kV)

Adjustable Voltage:

0.5kV - 1kV in 50V steps

1kV to 30kV in 100V steps

High Voltage Output Accuracy: ±5% or ±50V below 1000 Volts

Operating Temperature: 0°C to 50°C (32°F to 120°F)

Power Supply: Rechargeable lithium ion battery, fully charged within 4 hours

Measured Current Flow Accuracy: ±5% of full scale

Output Current:0 - 100µA maximum

Typical Battery Life - Backlight Off (On):

- DC5: 40 (20) hours

- DC15: 20 (15) hours

- DC30: 10 (8) hours

Instrument Case Dimensions: Waterproof, ABS case; 520 x 370 x 125mm (20.5 x 14.5 x 5”)

Weight: Base unit (including battery pack): 1.2kg (2.7lb) Handle: 0.6kg (1.3lb)

Packing List: Elcometer 266 DC Holiday Detector, battery pack, curly connection cable for high voltage handle, 10m (32’) signal return lead, battery charger with UK, EUR, US and AUS plugs, band brush, shoulder strap, tough plastic carry case and operating instructions

c/w CALIBRATION CERTIFICATE

The Elcometer 266 does not include the probe handle; please select the required handle from the accessories
