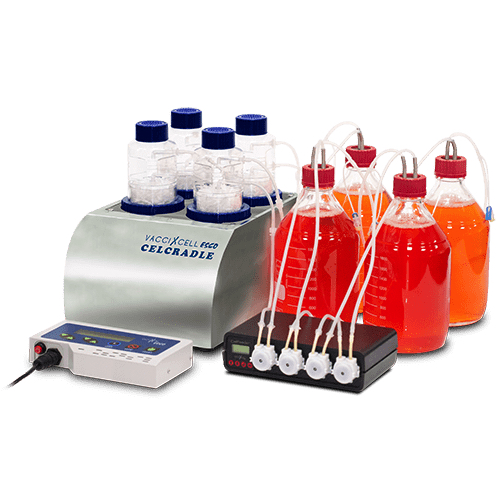

ESCO 2230005 CelCradle® Benchtop Bioreactor (595 x 640 x 633 mm)

Dimension: 264 W x 359 L x 170 H mm (10.4 x 14 x 6.7 inches)

Weight: 7.0 kg (15.4 lb)

Power: 100-230 VOLTS AC, 50/60 Hz (Input); 12 VOLTS DC (Output)

Up-Down Rate: 0.25 to 2.0 mm/sec. Step of 1.0 sec or 1.0 min.

Delay Time: 0 to 99 min 59 sec. Step of 1.0 sec or 1.0 min.

Driver Motor: DC stepping-motor

Environment: 20-42 °C, 0-90% relative humidity (in a CO2 incubator)

Mechanical Protection: Hi-low Optical Sensor

Transmission: Gear set (ratio 1:1.2) and belt

Recommended CO2 incubator dimension:

CCL-170L model:

505 x 535 x 633 mm(19.9" x 21.1" x 24.9")

CCL-240L model:

595 x 640 x 633 mm (23.4" x 25.2" x 24.9")

Package

1x Main Console

1x Control Box

1x 100-240 V Power Adapter

1x Signal Cable

1x Manual CD

2x Forceps

1x Crystal Violet Dye Nucleus Count Kit
