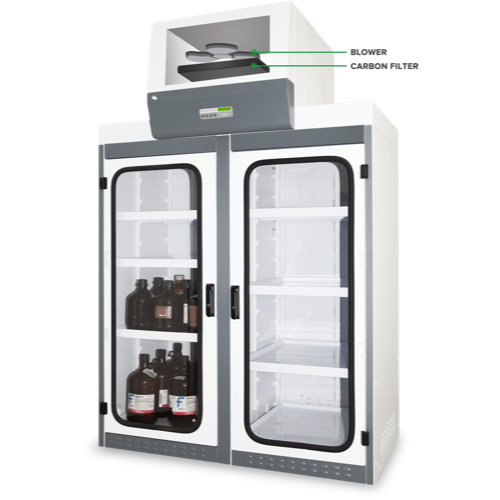

ESCO ASC-6A8 Ascent™ Storage Cabinet (1.8 m, 220-240 VAC, 1 Nanocarb Filter)

220-240 VAC, 50-60 Hz, 1Ø

Nominal Size: 1.8 m

External Dimensions (W x D x H): 2055 mm x 700 mm x 2050 mm (80.9” x 27.6” x 80.7”)

Door: Powder Coated electro-galvanized steel door with 6 mm thick Acrylic window and lockable Swing Handle

Main Body: 1.2 mm 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester ISOCIDE™ antimicrobial powder coated finish

Number of Blower/s: 2

Air volume: 140 cfm

Trays:

Standard: 12 trays (4 per section)

Maximum: 18 trays (6 per section)

Tray capacity per bottle size:

For 2.5 - 4 L bottles: each tray can fit 9 bottles

For 2.0 L bottles: each Tray can fit 12 bottles

Maximum weight per tray: 40 kg

Tray dimension: 600 mm x 600 mm (23.6” x 23.6”)

Tray material: Polypropylene

Filtration Elements:

Main Filter: Nanocarb™ Filter (type A-H)

Secondary Filter: none

Control System: Sentinel™ Silver microprocessor control system

VOC Sensor: yes

Door Alarm: yes
