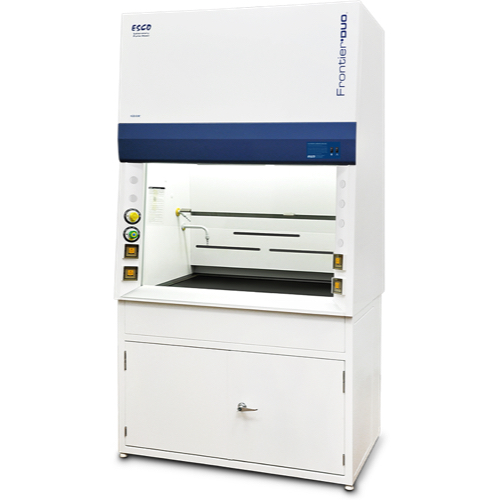

ESCO EFD-4A8 Frontier® DuoTM Fume Hoods (220-240 VAC, 7A, 1000 x 592 x 1259 mm)

220-240 VAC, 50/60 Hz, 1Ø

Nominal size: 1.2 meter

External Dimensions: (W x D x H) 1200 x 770 x 1500 mm

Internal Work Area, Dimensions: (W x D x H) 1000 x 592 x 1259 mm

Exhaust Volume/ Static Pressure Required Face Velocity of 0.5 m/s (100 fpm) at Full Open Sash: 1074 cmh at 41 Pa 632 cfm at 0.16" WG

Exhaust Outlet Diameter and Material: 305 mm, EG Powdercoat

Number of Exhaust Collars: 1

Fluorescent Light Intensity: 800 lux

Construction:

Main Body: EG steel with oven-baked Epoxy-polyester hybrid Isocide™ powder coating

Internal Liner & Baffle System: Esco Resinate™ phenolic resin laminates

Worktop: Phenolic Resin

Sash Specification:

Sash Material: Frameless tempered safety glass

Sash Configuration: Vertical

Sloping: 8° slope

Maximum Sash Opening: 550 mm (21.7")

Power Consumption: 25 W (Fluorescent Lighting Only) / 60 W (Fluorescent Lighting and Microprocessor Control System)

Electrical*:

Cabinet Full Load Amps (FLA): 7 A

Cabinet BTU/Hr**: 205

Net Weight***: 157 Kg

*The maximum rating of all the electrical outlets combined is 5 Amp. Please contact Esco if you need electrical outlets with higher capacity.

**Cabinet BTU = Cabinet nominal power x 3.41214

***Fume hood unit only. Excludes base cabinet/ optional stand.
