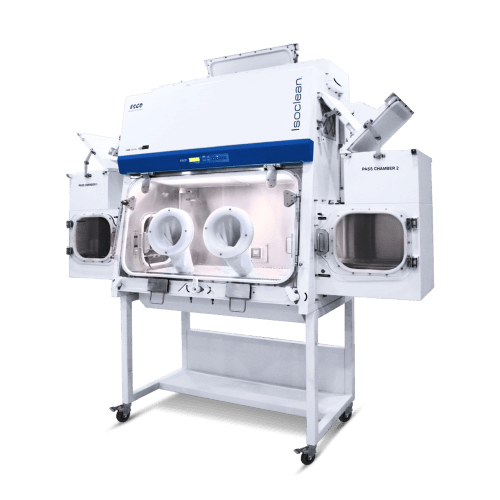

4' Negative Pressure Isolator With Sharps Provisions
Process Chamber Nominal Size (Width): 1130 mm
External Dimensions (W x D x H):
+ Without stand: 1714 x 825 x 1290 mm
+ With SPC-A/SPL-A (713mm, 28”): 1714 x 825 x 2003 mm
+ With SPC/SPL (860mm, 34”): 1714 x 825 x 2150 mm
+ With STL/STC (660 to 885 mm): 1714 x 825 x 1950 to 2175 mm
+ With SHM (685 to 935 mm): 1714 x 825 x 1975 to 2225 mm
Process Chamber Internal Dimension (W x D x H): 1130 x 540 x 650 mm
Pass Chamber Internal Dimension (W x D x H): 318 x 540 x 650 mm (12.5” x 21.3” x 25.6”)
Pass Chamber Door Dimension (W x H):
Inner door: 360 x 600 mm
Outer door: Not specified
Airflow Regime: Recirculating
Glove Port Diameter: 200 mm (Circular) Note: Oval glove port (200 x 300 mm) is optional as an upgrade
Glove Port Quantity: 2
Chamber Environment: ISO Class 5 for all chambers (Grade A)
Process Chamber Downflow Velocity: 0.4 +/- 20% m/s (1.31 f/s)
Pre-filter (if equipped with Carbon Filter): Panolair Inlet Filter F7/F8
Downflow and Exhaust Filter Type: HEPA (H14) Filter with Integral Metal Guards and Filter Frame Gaskets; Fully Compliant With EN 1822 (H14 and IEST-RPCC001.3 Requirements)
Filter Efficiency: >99.995% for particle 0.1-0.2 microns (MPPS, as per EN1822)
Lighting Level: >650 Lux
Sound Level: ≤ 67 dBA
Isolator Construction:
Main Body: 1.2 mm (0.05”) 18 gauge electro-galvanized steel with white oven-baked epoxy-polyester antimicrobial powder-coated finish
Work Tray: 1.5 mm (0.06”) 16 gauge stainless steel, type 316L, with 4B finish
Side Walls: 1.2 mm (0.05”) 18 gauge stainless steel, type 316L, with 4B finish
Electrical:
220-240V, AC, 50 Hz, 1Ø
Cabinet Full Load Amps (FLA): 2.5A
Optional Outlets FLA: 5 A
Cabinet Nominal Power: TBD
Cabinet BTU: TBD
Options/Accessories:
Adjustable Hydraulic Stand
Carbon Filter
CCTV
Drain
Electrical Outlet
Glove Leak Tester
IV Bar with S hooks
UV Lamp
Minibioatom decontamination
Automated Pressure Hold Test
Rear View Screen Adaptation
Single-piece Trays
Multiple-piece Trays
Sharps Disposal
